ADGS5412BCPZ-RL7 - Analog Devices

Description: SPI Interface, 4× SPST Switches, 9.8 Ω RON, ±20 V/+36 V, Mux Configurable

Download ADGS5412BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

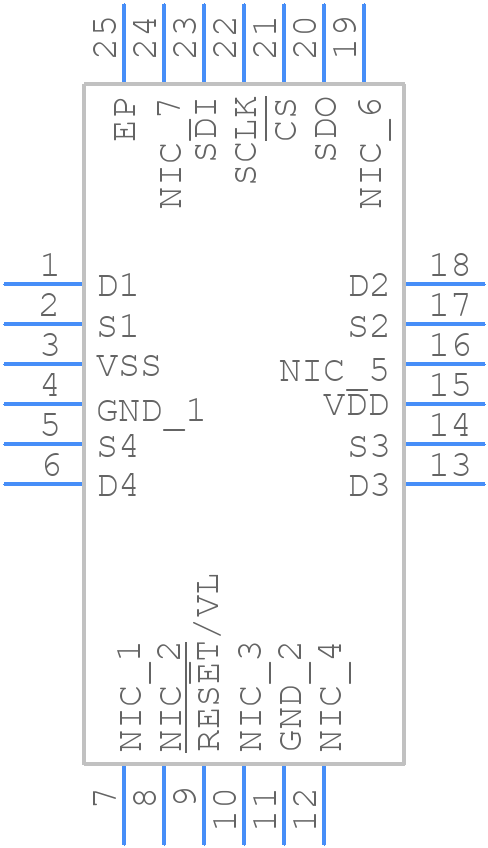

ADGS5412BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADGS5412BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-17
click to zoom
3D Models
ADGS5412BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-17
click to zoom

ADGS5412BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADGS5412BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-17

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    78 dB

  • On-state Resistance Match-Nom:

    0.35 Ω

  • On-state Resistance-Max (Ron):

    11 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.133 A

  • Supply Current-Max (Isup):

    0.07 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    270 ns

  • Switch-on Time-Max:

    580 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADGS5412BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADGS5412BCPZ-RL7 involves keeping the signal paths short, using a solid ground plane, and minimizing noise coupling. It's also recommended to use a 4-layer PCB with a dedicated analog ground layer. Additionally, place the device close to the analog signal sources and use a common mode filter to reduce EMI.
  • To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 100 nF) between the VDD and GND pins, and another capacitor (e.g., 10 μF) between the VDD and GND pins for bulk decoupling. Place these capacitors as close to the device as possible. Also, use a low-dropout regulator (LDO) or a switching regulator with a low noise output to power the device.
  • The ADGS5412BCPZ-RL7 can operate up to 100 MHz, but the actual frequency limit depends on the specific application, signal amplitude, and PCB layout. It's recommended to consult the datasheet and application notes for more information on frequency response and signal integrity.
  • The ADGS5412BCPZ-RL7 has built-in ESD protection, but it's still recommended to use external ESD protection devices, such as TVS diodes or ESD arrays, to protect the device from electrostatic discharge. Follow the recommended PCB layout and handling procedures to minimize the risk of ESD damage.
  • The ADGS5412BCPZ-RL7 is rated for operation up to 125°C, but the device's performance and reliability may degrade at higher temperatures. It's recommended to consult the datasheet and application notes for more information on temperature-related specifications and derating factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADGS5412BCPZ-RL7 Overview

Use the download button to access the ADGS5412BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADGS5, or try a keyword search, such as Multiplexers or Switches
