ADGS5412BCPZ - Analog Devices

Description: Analog Switch ICs SPI-Interface 4xSPST Switches,9.8? RON

Download ADGS5412BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

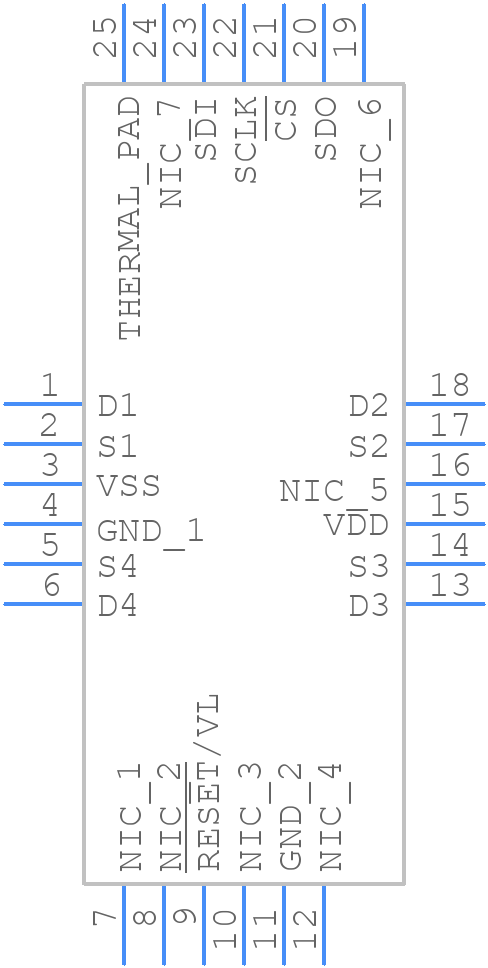

ADGS5412BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADGS5412BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-17
click to zoom
3D Models
ADGS5412BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-17
click to zoom

ADGS5412BCPZ Details

  • Manufacturer Part Number:

    ADGS5412BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-17

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -22 V

  • Neg Supply Voltage-Min (Vsup):

    -9 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    78 dB

  • On-state Resistance Match-Nom:

    0.35 Ω

  • On-state Resistance-Max (Ron):

    11 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.133 A

  • Supply Current-Max (Isup):

    0.07 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    270 ns

  • Switch-on Time-Max:

    580 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADGS5412BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADGS5412BCPZ involves keeping the signal paths short, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce parasitic inductance and capacitance.
  • To ensure the ADGS5412BCPZ is properly biased, make sure to connect the VDD pin to a stable voltage source between 1.65 V and 5.5 V, and the VSS pin to a solid ground. Also, ensure that the input signals are within the recommended voltage range and that the device is operated within the specified temperature range.
  • The ADGS5412BCPZ can operate at frequencies up to 100 MHz, but the actual frequency of operation depends on the specific application and the signal quality. It's recommended to consult the datasheet and application notes for more information on frequency planning and signal integrity.
  • The ADGS5412BCPZ has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging materials. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the PCB design.
  • The recommended power sequencing for the ADGS5412BCPZ is to power up the VDD pin first, followed by the input signals. When powering down, reverse the sequence to prevent any potential latch-up or damage to the device.
