ADGS5414BCPZ-RL7 - Analog Devices

Description: SPI Interface, Octal SPST Switches, 13.5 Ω RON, ±20 V/+36 V, Mux

Download ADGS5414BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

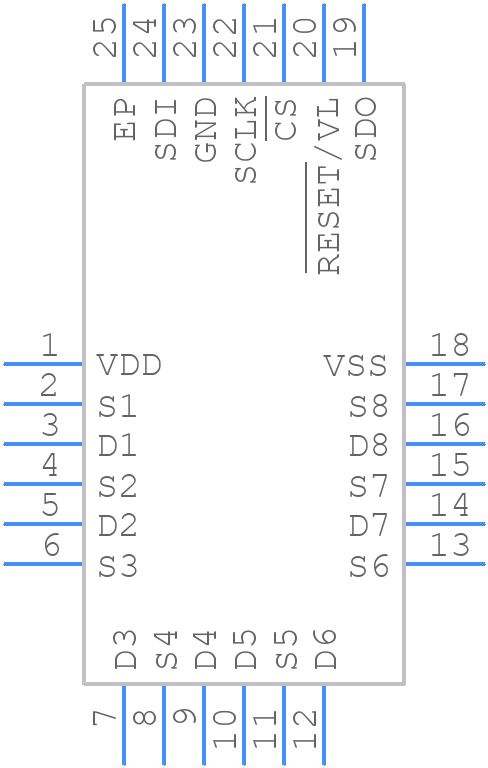

Symbol
ADGS5414BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADGS5414BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-17
click to zoom
3D Models
ADGS5414BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-17
click to zoom

ADGS5414BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADGS5414BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-17

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-10-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -13.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.3 Ω

  • On-state Resistance-Max (Ron):

    15 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.086 A

  • Supply Current-Max (Isup):

    0.49 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    195 ns

  • Switch-on Time-Max:

    515 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADGS5414BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADGS5414BCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The ADGS5414BCPZ-RL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. It's recommended to use an ESD wrist strap or mat, and to handle the device by the body rather than the pins. Additionally, it's a good idea to use ESD-protected storage and shipping materials.
  • To troubleshoot issues with the ADGS5414BCPZ-RL7, start by reviewing the datasheet and application notes to ensure that the device is being used within its specified operating conditions. Check the power supply voltage, clock frequency, and signal integrity. Use oscilloscopes and logic analyzers to debug the issue, and consider using a development board or evaluation kit to isolate the problem.
  • The ADGS5414BCPZ-RL7 is a commercial-grade device and is not specifically designed for radiation-hardened applications. However, it's built with a latch-up resistant design and has been tested for single-event effects (SEEs). For applications requiring radiation tolerance, it's recommended to consult with Analog Devices Inc. for specific guidance and to consider using radiation-hardened devices.
