ADHV4710BSVZ-RL - Analog Devices

Description: Wide high voltage supply range: ±12V to ±55V  Low quiescent current: 12mA  High output capability  Output voltage range:Up to ±52V for IOUT = ±100 mA  High output current drive: ±1A continuous  High slew rate: ±1300V/µs into 1nF load  Extensive configurability  Unlimited capacitive loads stability with external compensation and output slew limiting  Stable for any gain and adjustable slew rate with external transconductance RSLEW  Programmable supply current with shutdown mode  Fault

Download ADHV4710BSVZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADHV4710BSVZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

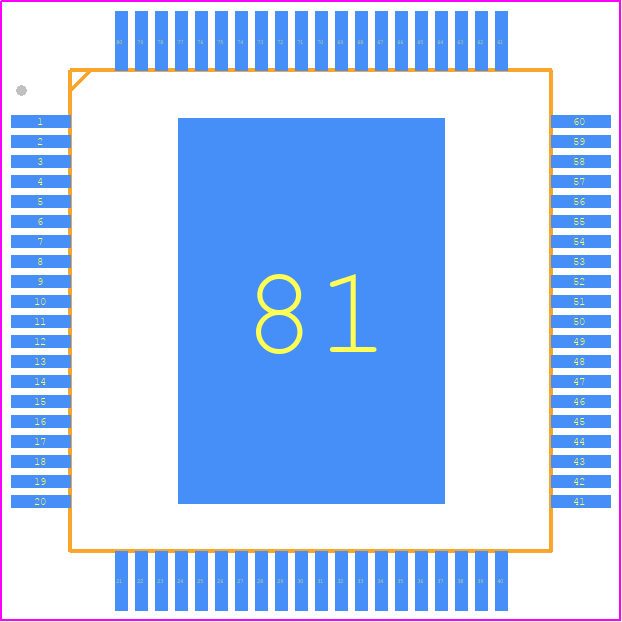

ADHV4710BSVZ-RL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-80-7
click to zoom
3D Models
ADHV4710BSVZ-RL - Analog Devices - 3D model - Quad Flat Packages - SV-80-7
click to zoom

ADHV4710BSVZ-RL Details

  • Manufacturer Part Number:

    ADHV4710BSVZ-RL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADHV4710BSVZ-RL Overview

Use the download button to access the ADHV4710BSVZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADHV4, or try a keyword search, such as Operational Amplifiers
