ADIN1100BCPZ - Analog Devices

Description: Robust, Industrial, Low Power 10BASE-T1L Ethernet PHY

Download ADIN1100BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

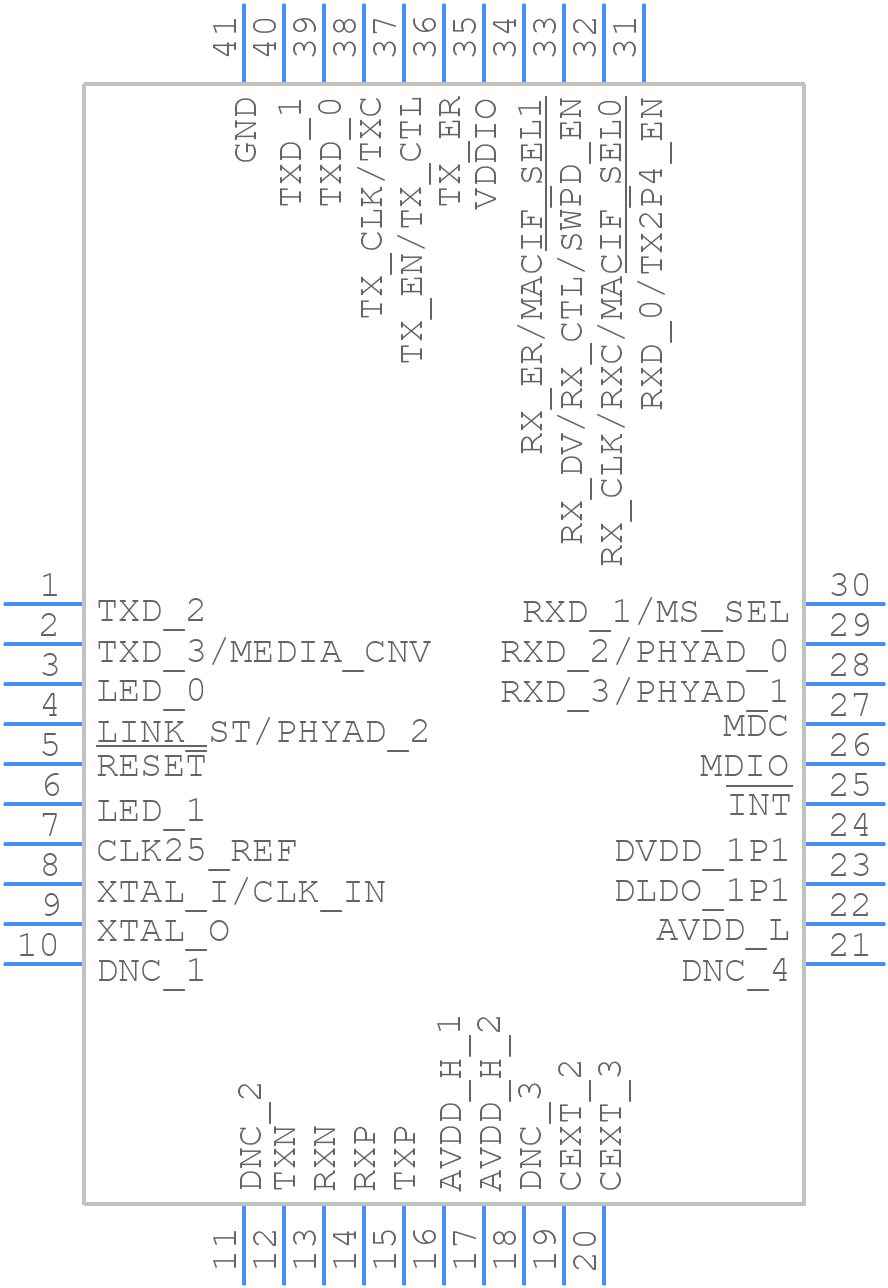

ADIN1100BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADIN1100BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-29
click to zoom
3D Models
ADIN1100BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-29
click to zoom

ADIN1100BCPZ Details

  • Manufacturer Part Number:

    ADIN1100BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-29

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ESD FOR TXN, TXP, RXN, RXP Pins is 3B

  • Data Rate:

    10000 Mbps

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

ADIN1100BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADIN1100BCPZ involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliable operation of the ADIN1100BCPZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its specified operating temperature range.
  • The ADIN1100BCPZ is designed to operate with a 50Ω transmission line. Using it with a non-50Ω transmission line can result in signal reflections, attenuation, and distortion. To mitigate these effects, impedance matching networks or transmission line termination resistors may be required.
  • While the ADIN1100BCPZ can operate with a supply voltage range of 2.7V to 3.6V, it's essential to ensure that the device's performance and functionality are not compromised. Consult the datasheet and application notes for specific guidance on operating the device at non-recommended supply voltages.
  • To troubleshoot issues with the ADIN1100BCPZ, start by verifying the device's configuration and setup, checking for proper power supply and clocking, and ensuring that the transmission line is properly terminated. Use diagnostic tools such as oscilloscopes, logic analyzers, and packet sniffers to identify the root cause of the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADIN1100BCPZ Overview

Use the download button to access the ADIN1100BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADIN1, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
