ADIN1100CCPZ-R7 - Analog Devices

Description: 1/1 Transceiver Full, Half Ethernet 40-LFCSP (6x6) , 1V ~ 1.2V, 1.71V ~ 3.46V, 3.13V , -40°C ~ 105°C (TA)

Download ADIN1100CCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

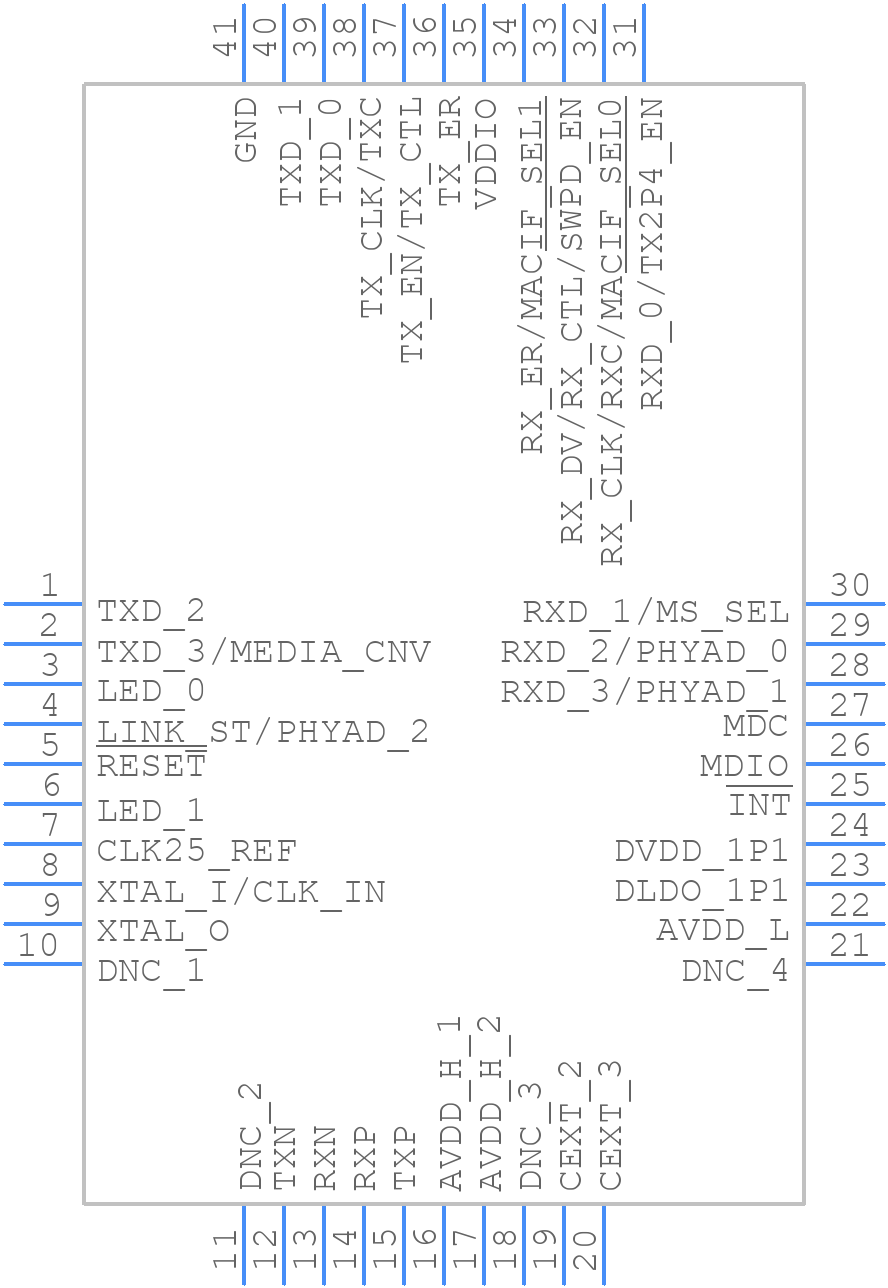

ADIN1100CCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADIN1100CCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-29
click to zoom
3D Models
ADIN1100CCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-29
click to zoom

ADIN1100CCPZ-R7 Details

  • Manufacturer Part Number:

    ADIN1100CCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-29

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ESD FOR TXN, TXP, RXN, RXP Pins is 3B

  • Data Rate:

    10000 Mbps

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

ADIN1100CCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADIN1100CCPZ-R7 involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure reliable operation of the ADIN1100CCPZ-R7 in high-temperature environments, it is recommended to follow proper thermal management practices, such as using a heat sink, ensuring good airflow, and keeping the device within its specified operating temperature range. Additionally, consider using a thermally conductive material for the PCB and ensuring that the device is properly soldered.
  • Using the ADIN1100CCPZ-R7 with a clock frequency different from the recommended 125 MHz may affect its performance, power consumption, and noise tolerance. It is recommended to consult with Analog Devices Inc or perform thorough testing to ensure that the device meets the system's requirements at the desired clock frequency.
  • To troubleshoot issues with the ADIN1100CCPZ-R7, start by consulting the datasheet and application notes, and then perform a thorough review of the PCB layout, power supply, and signal integrity. Use debugging tools such as logic analyzers or oscilloscopes to identify the source of the issue. If necessary, contact Analog Devices Inc for further support.
  • Using the ADIN1100CCPZ-R7 with a supply voltage different from the recommended 3.3 V may affect its performance, power consumption, and noise tolerance. It is recommended to consult with Analog Devices Inc or perform thorough testing to ensure that the device meets the system's requirements at the desired supply voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADIN1100CCPZ-R7 Overview

Use the download button to access the ADIN1100CCPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADIN1, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
