ADIN1100CCPZ - Analog Devices

Description: Robust, Industrial, Low Power 10BASE-T1L Ethernet PHY

Download ADIN1100CCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

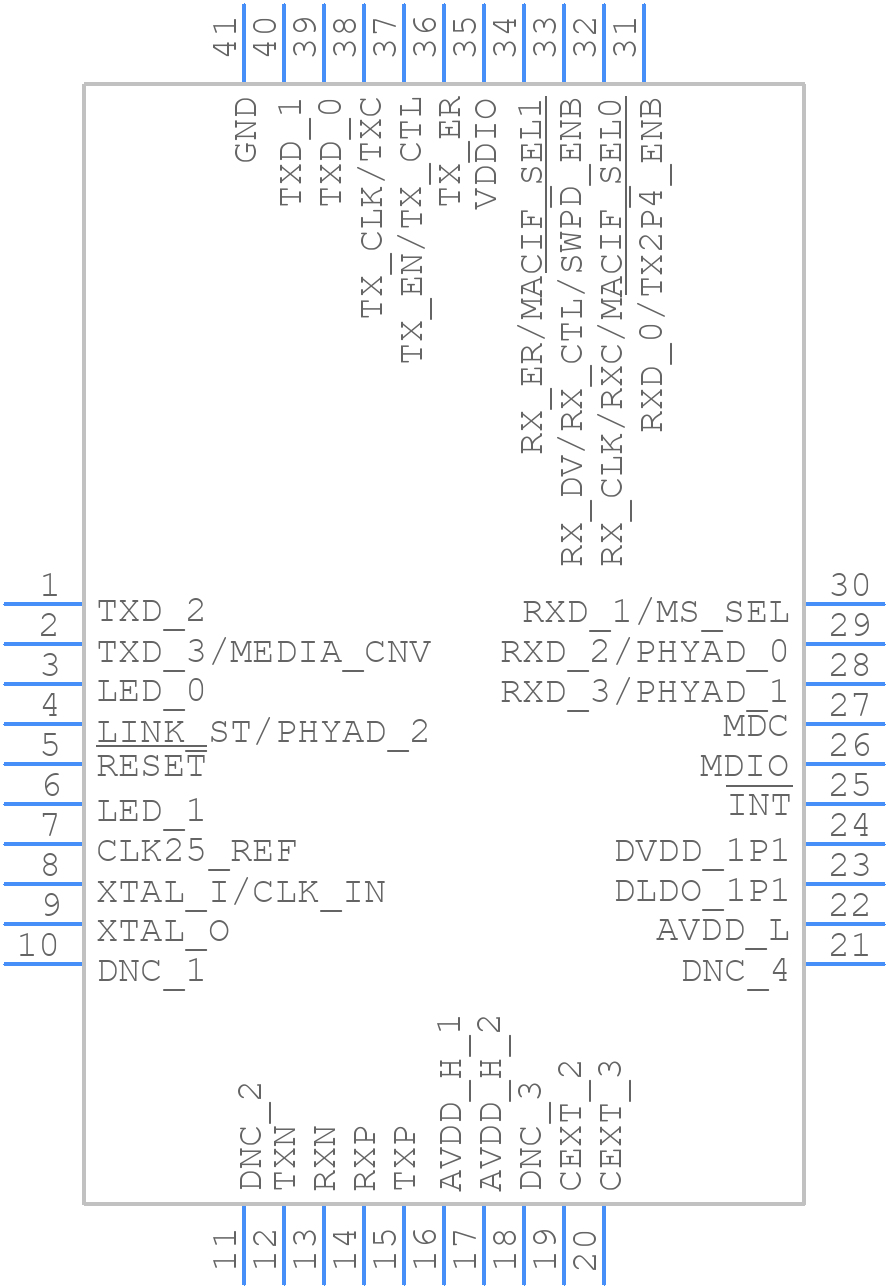

ADIN1100CCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADIN1100CCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-29
click to zoom
3D Models
ADIN1100CCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-29
click to zoom

ADIN1100CCPZ Details

  • Manufacturer Part Number:

    ADIN1100CCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-29

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ESD FOR TXN, TXP, RXN, RXP Pins is 3B

  • Data Rate:

    10000 Mbps

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

ADIN1100CCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signals separate and use a common mode choke to filter out noise.
  • Use a heat sink to dissipate heat, ensure good airflow, and consider using a thermal interface material to improve heat transfer. Also, follow the recommended operating temperature range and derate the device accordingly.
  • Use a combination of common mode chokes, differential mode filters, and shielding to filter out noise and interference. Also, consider using a Faraday cage or a shielded enclosure to reduce electromagnetic interference.
  • Use a logic analyzer or an oscilloscope to debug the issue. Check the power supply, clock signals, and data lines for any anomalies. Also, consult the datasheet and application notes for troubleshooting guidelines.
  • Power up the device in the following sequence: VDD, VCC, and then the clock signal. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
