ADIN1110BCPZ - Analog Devices

Description: Robust, Industrial, Low Power 10BASE-T1L Ethernet MAC-PHY

Download ADIN1110BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

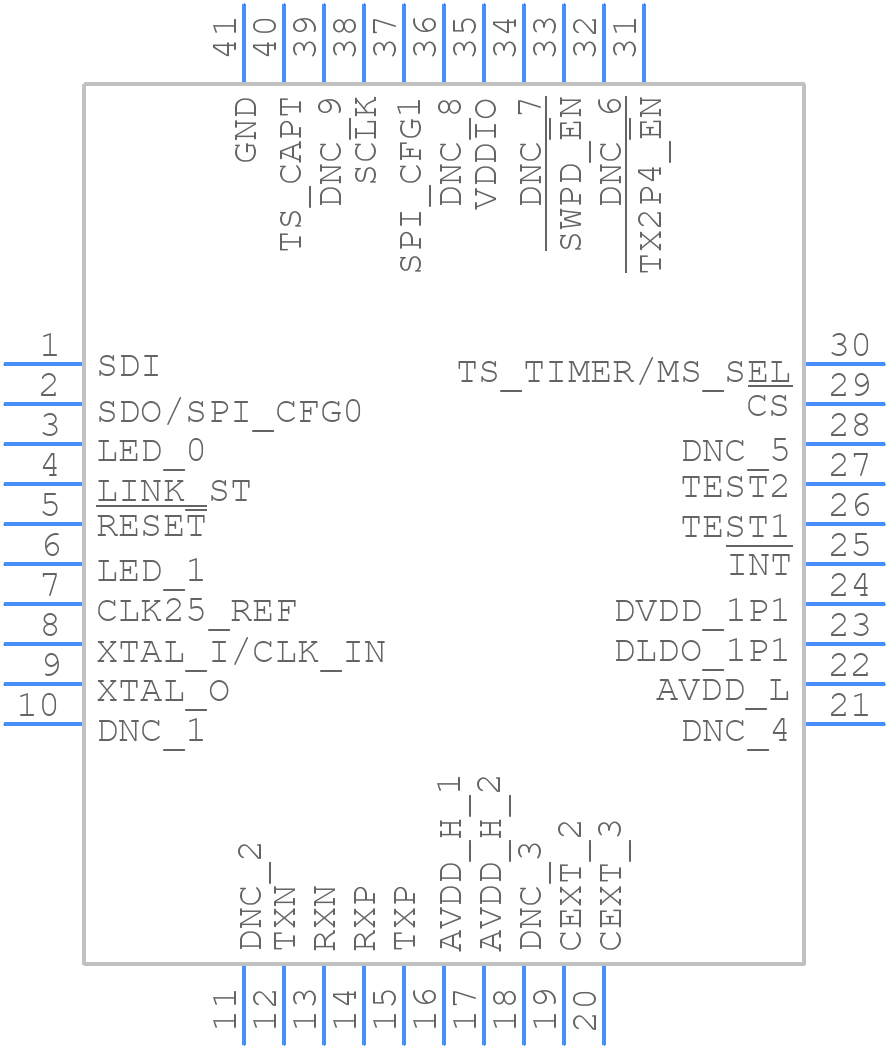

ADIN1110BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADIN1110BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-29
click to zoom
3D Models
ADIN1110BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-29
click to zoom

ADIN1110BCPZ Details

  • Manufacturer Part Number:

    ADIN1110BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-29

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Rate:

    10000 Mbps

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADIN1110BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADIN1110BCPZ involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing noise coupling between the Ethernet interface and the analog circuitry. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure reliable operation of the ADIN1110BCPZ in high-temperature environments, it is essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
  • The recommended power-up sequence for the ADIN1110BCPZ is to first apply the analog supply voltage (VCCA) followed by the digital supply voltage (VCCD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up conditions.
  • To troubleshoot issues with the Ethernet interface of the ADIN1110BCPZ, start by verifying that the device is properly configured and that the Ethernet cable is securely connected. Check the device's status registers to identify any error conditions. Use a network analyzer or packet sniffer to verify that the device is transmitting and receiving packets correctly. If issues persist, try resetting the device or re-initializing the Ethernet interface.
  • The ADIN1110BCPZ's Ethernet interface supports cable lengths up to 100 meters, which is the standard maximum length for Ethernet cables. However, the actual cable length that can be supported may be shorter depending on the specific cable quality, noise environment, and other factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADIN1110BCPZ Overview

Use the download button to access the ADIN1110BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADIN1, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
