ADIN2111CCPZ-R7 - Analog Devices

Description: Low Complexity, 2-Port Ethernet Switch with Integrated 10BASE-T1L PHYs

Download ADIN2111CCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

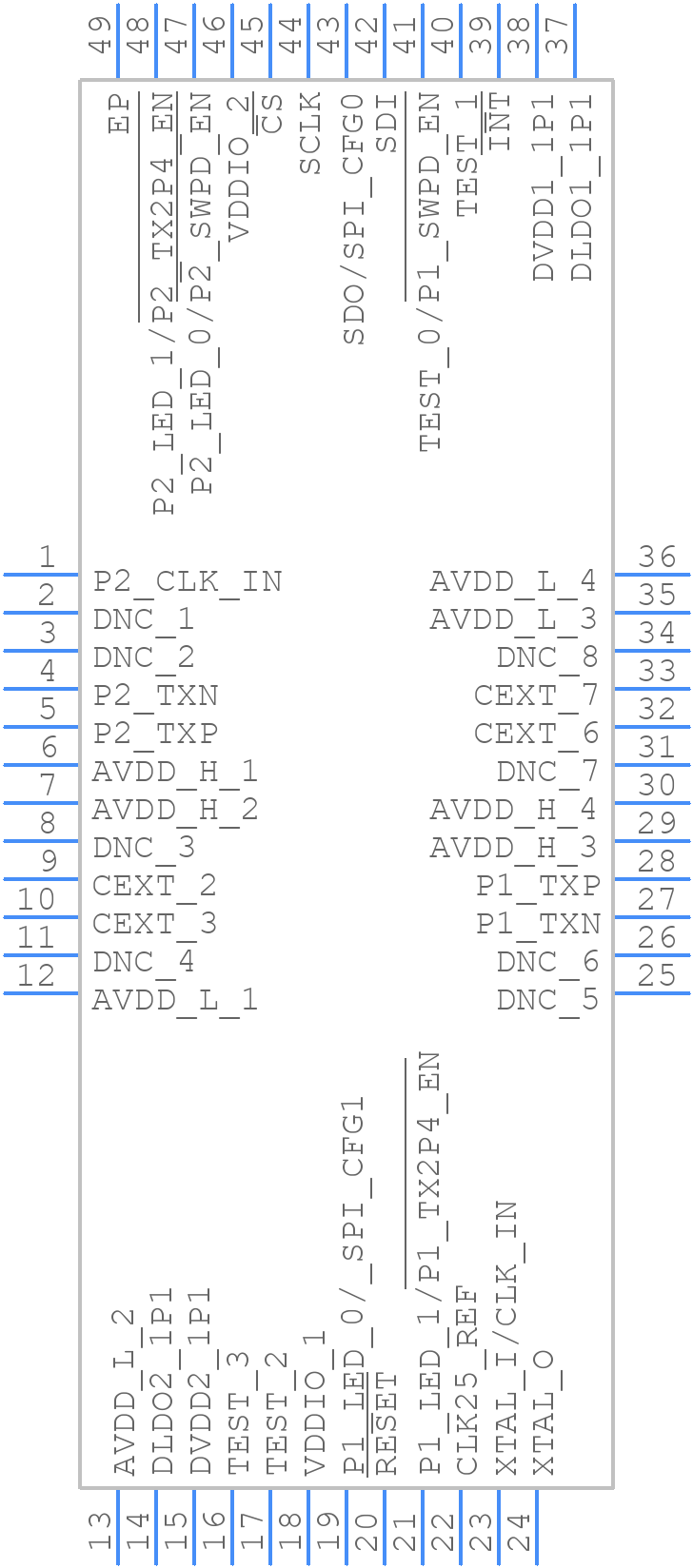

ADIN2111CCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADIN2111CCPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-13 (LFCSP)
click to zoom
3D Models
ADIN2111CCPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-48-13 (LFCSP)
click to zoom

ADIN2111CCPZ-R7 Details

  • Manufacturer Part Number:

    ADIN2111CCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-13

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Rate:

    40000000 Mbps

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADIN2111CCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADIN2111CCPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the antenna. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground and another for the digital ground.
  • The ADIN2111CCPZ-R7 requires calibration for optimal performance. This can be done by following the calibration procedure outlined in the datasheet, which involves setting the device's internal registers to the recommended values and then fine-tuning them based on the specific application's requirements.
  • The ADIN2111CCPZ-R7 is rated for operation over the industrial temperature range of -40°C to +85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • Yes, the ADIN2111CCPZ-R7 can be used in a system with multiple antennas. However, it's recommended to use an external switch or multiplexer to select the desired antenna and to ensure that the device is properly configured for the specific antenna being used.
  • Troubleshooting issues with the ADIN2111CCPZ-R7 typically involves checking the device's power supply, clock signals, and digital interfaces. It's also recommended to use a logic analyzer or oscilloscope to monitor the device's signals and to consult the datasheet and application notes for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADIN2111CCPZ-R7 Overview

Use the download button to access the ADIN2111CCPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADIN2, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
