ADIS16209CCCZ - Analog Devices

Description: IC, 2 AXIS ACCELEROMETER, 1.7G

Download ADIS16209CCCZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

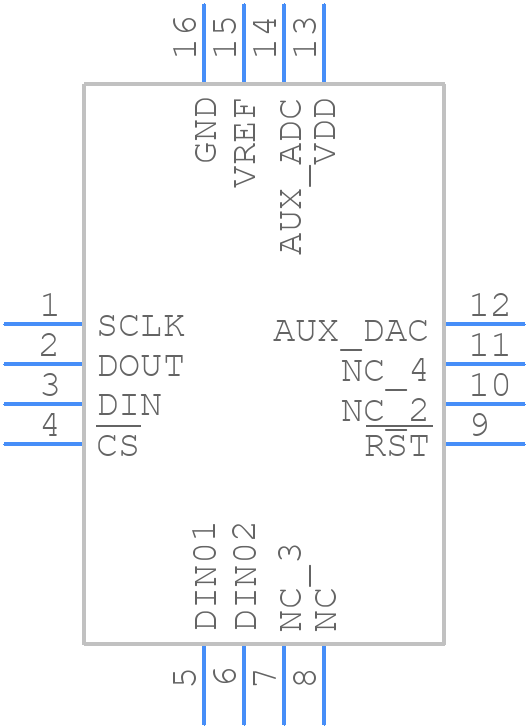

ADIS16209CCCZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADIS16209CCCZ - Analog Devices PCB footprint - Other - Other - LGA16R180P4X4_933X933X390
click to zoom
3D Models
ADIS16209CCCZ - Analog Devices - 3D model - Other - LGA16R180P4X4_933X933X390
click to zoom

ADIS16209CCCZ Details

  • Manufacturer Part Number:

    ADIS16209CCCZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA

  • Package Description:

    LGA-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CC-16-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B16

  • JESD-609 Code:

    e4

  • Length:

    9.2 mm

  • Moisture Sensitivity Level:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    LGA16,4X4,70

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.9 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    1.78 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.2 mm

ADIS16209CCCZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the VDD pin first, followed by the VIO pin. This ensures that the internal voltage regulators are powered up correctly.
  • The ADIS16209CCCZ can be configured using the SPI interface. The device should be connected to the microcontroller's SPI bus, and the microcontroller should be configured to send the appropriate commands and data to the ADIS16209CCCZ.
  • The maximum sampling rate of the ADIS16209CCCZ is 1.67 kHz. However, the actual sampling rate may be limited by the system's bandwidth and the application's requirements.
  • The ADIS16209CCCZ has an internal calibration mechanism that can be initiated by writing to the CALIBRATE register. The device will then perform a self-test and adjust its internal parameters to ensure accurate measurements.
  • The operating temperature range of the ADIS16209CCCZ is -40°C to +105°C. However, the device's performance may be affected at extreme temperatures, and the user should consult the datasheet for more information.
