A good PCB layout for the ADIS16260BCCZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
The ADIS16260BCCZ has an internal calibration mechanism that can be triggered through the SPI interface. The device can be calibrated using the CAL_X, CAL_Y, and CAL_Z registers. Refer to the datasheet for the calibration procedure.
The ADIS16260BCCZ has a maximum acceleration range of ±18g. However, the device can be configured to measure accelerations up to ±200g using the RANGE_SEL pin.
The ADIS16260BCCZ is rated for operation from -40°C to +105°C. However, the device's accuracy and stability may be affected at high temperatures. It is recommended to consult the datasheet and application notes for guidance on using the device in high-temperature applications.
The ADIS16260BCCZ has a SPI interface that can be connected to a microcontroller. The device requires a 3.3V power supply and a clock signal. The microcontroller can read data from the device using the SPI interface and configure the device using the SPI commands.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADIS16260BCCZ Overview

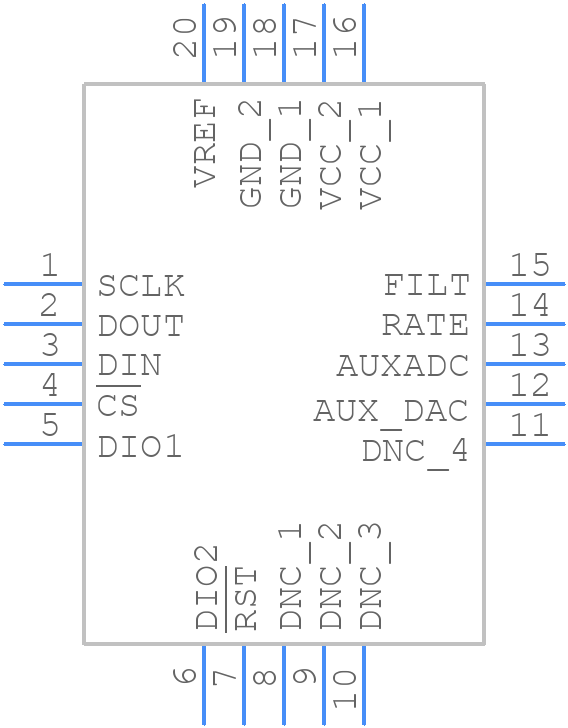

Use the download button to access the ADIS16260BCCZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADIS1,
or try a keyword search, such as Other Signal Circuits
