ADIS16470AMLZ - Analog Devices

Description: IMUs - Inertial Measurement Units 6 D0F Prec IMU 40g, 2000 DPS DNR

Download ADIS16470AMLZ Model

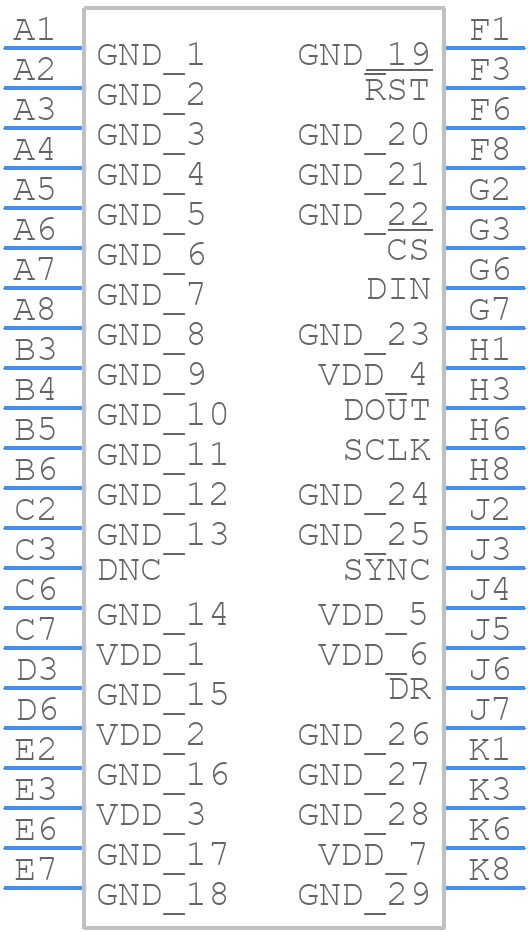

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADIS16470AMLZ - Analog Devices PCB footprint - Other - Other - 44-Ball Ball Grid Array Module (ML-44-1)
click to zoom
3D Models
ADIS16470AMLZ - Analog Devices  - 3D model - Other - 44-Ball Ball Grid Array Module (ML-44-1)
click to zoom

ADIS16470AMLZ Details

  • Manufacturer Part Number:

    ADIS16470AMLZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    ML-44-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    7A994

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-10-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XXMA-B44

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    11.35 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Position:

    UNSPECIFIED

  • Width:

    11 mm

ADIS16470AMLZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the VDD pin first, followed by the VIO pin. This ensures that the internal voltage regulators are powered up correctly.
  • The ADIS16470AMLZ uses a standard SPI interface. Set the CS pin low to initiate communication, and use a clock frequency of up to 10 MHz. The device uses mode 3 SPI operation (CPOL = 1, CPHA = 1).
  • The SYNC_IN pin is used to synchronize the sampling of the accelerometer and gyroscope data. Connect an external clock signal to this pin to synchronize the sampling with other devices or systems.
  • Calibration involves adjusting the accelerometer and gyroscope offsets and scale factors. Use the internal self-test feature or an external calibration procedure to optimize performance. Refer to the datasheet and application notes for detailed calibration procedures.
  • The ADIS16470AMLZ is rated for operation from -40°C to +105°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal management and follow the recommended operating conditions for optimal performance.
