ADIS16475-2BMLZ - Analog Devices

Description: ANALOG DEVICES - ADIS16475-2BMLZ - MEMS Module, Tri-Axis Gyroscope, Tri-Axis Accelerometer, 3 V, 3.6 V, BGA, 44 Pins, ± 500°/s

Download ADIS16475-2BMLZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

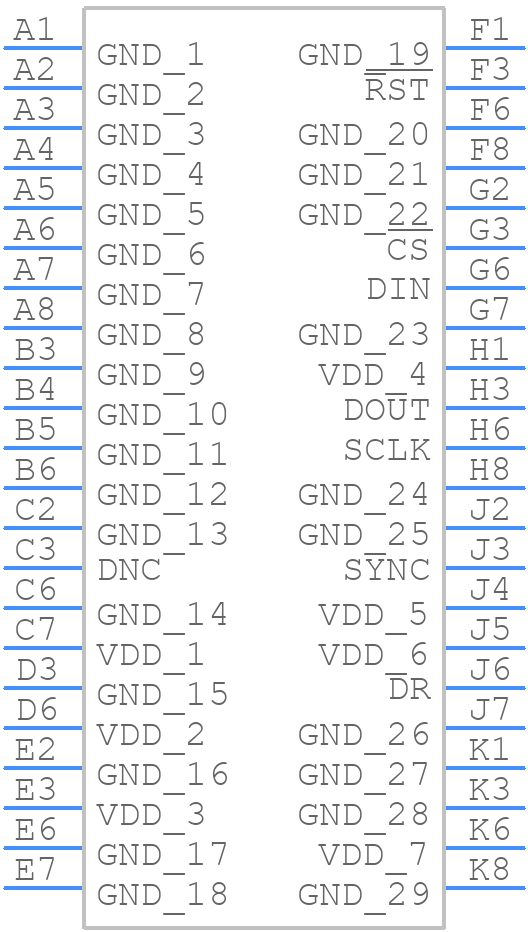

Symbol
ADIS16475-2BMLZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADIS16475-2BMLZ - Analog Devices PCB footprint - Other - Other - 44-Ball Ball Grid Array Module [BGA] (ML-44-1)
click to zoom
3D Models
ADIS16475-2BMLZ - Analog Devices - 3D model - Other - 44-Ball Ball Grid Array Module [BGA] (ML-44-1)
click to zoom

ADIS16475-2BMLZ Details

  • Manufacturer Part Number:

    ADIS16475-2BMLZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    ML-44-1

  • Country Of Origin:

    USA

  • ECCN Code:

    7A994

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-10-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B44

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA44(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    11.35 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

ADIS16475-2BMLZ Frequently Asked Questions (FAQs)

  • For optimal performance, it is recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device, and the power supply lines should be routed away from the sensitive analog signals.
  • The ADIS16475-2BMLZ has an internal calibration mechanism, but it may require additional external calibration for specific applications. It is recommended to follow the calibration procedure outlined in the datasheet, and to use the provided software tools to adjust the calibration coefficients.
  • The ADIS16475-2BMLZ is rated for operation from -40°C to +105°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related performance characteristics.
  • The ADIS16475-2BMLZ has a SPI-compatible interface, and can be interfaced with a microcontroller or FPGA using a standard SPI protocol. The recommended communication protocol is outlined in the datasheet, and the user should consult the datasheet for specific interface and protocol details.
  • The ADIS16475-2BMLZ has a typical power consumption of 35mA at 3.3V, and has a power-down mode to reduce power consumption. The user should consult the datasheet for specific power management requirements and recommendations.
