ADIS16500AMLZ - Analog Devices

ADIS16500AMLZ Details

• Manufacturer Part Number:

  ADIS16500AMLZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

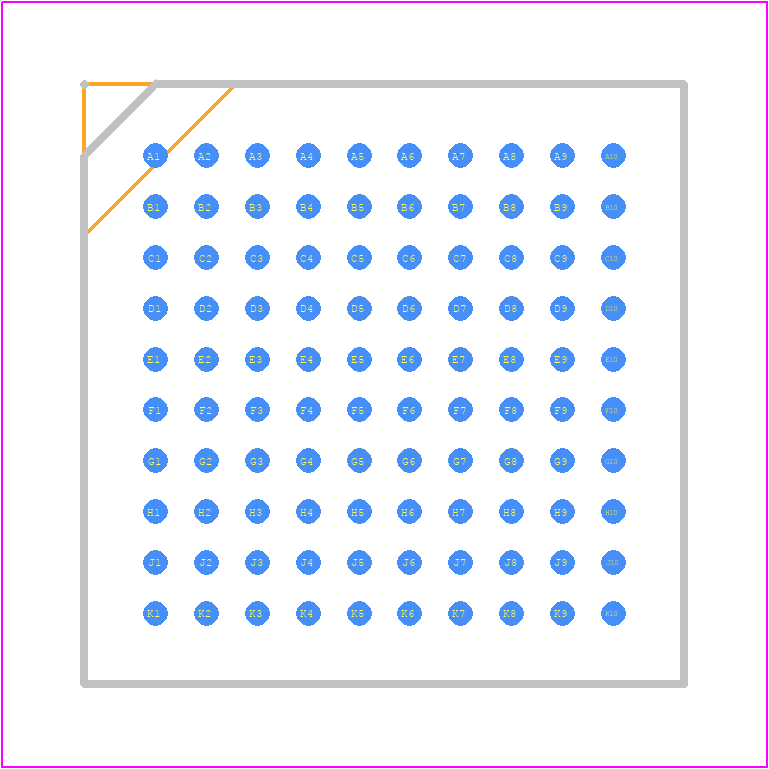

• Package Description:

  BGA-100

• Pin Count:

  100

• Manufacturer Package Code:

  ML-100-1

• ECCN Code:

  7A994

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog IC - Other Type:

  ANALOG CIRCUIT

• JESD-30 Code:

  S-PBGA-B100

• JESD-609 Code:

  e1

• Length:

  15 mm

• Moisture Sensitivity Level:

  5

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  100

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA100,10X10,50

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Seated Height-Max:

  6.077 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Width:

  15 mm
