ADIS16505-1BMLZ - Analog Devices

Description: Accelerometer, Gyroscope, 6 Axis Sensor SPI Output

Download ADIS16505-1BMLZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADIS16505-1BMLZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

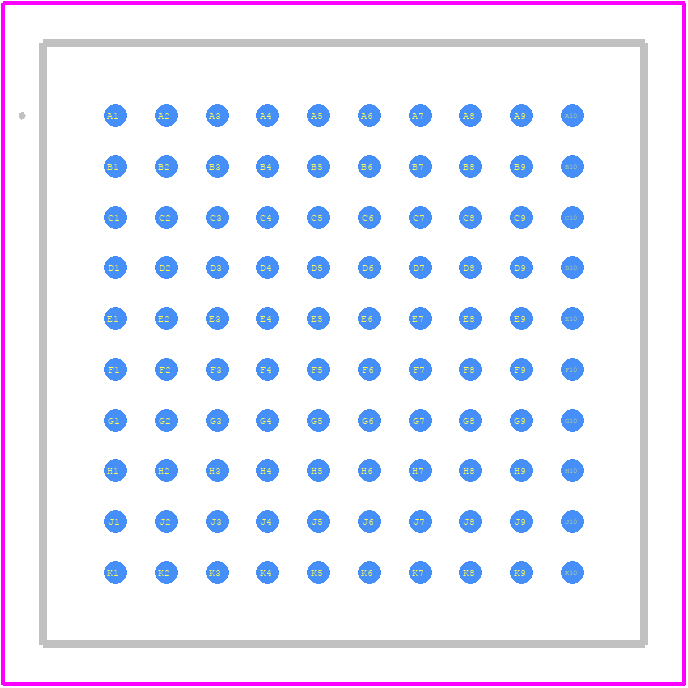

ADIS16505-1BMLZ - Analog Devices PCB footprint - Other - Other - ML-100-1_2024-1
click to zoom
3D Models
ADIS16505-1BMLZ - Analog Devices - 3D model - Other - ML-100-1_2024-1
click to zoom

ADIS16505-1BMLZ Details

  • Manufacturer Part Number:

    ADIS16505-1BMLZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    100

  • Manufacturer Package Code:

    ML-100-1

  • ECCN Code:

    7A994

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-10-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B100

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA100,10X10,50

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    6.077 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

ADIS16505-1BMLZ Frequently Asked Questions (FAQs)

  • For optimal performance, it is recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device, and the power supply lines should be filtered to reduce noise.
  • The ADIS16505-1BMLZ has an internal calibration mechanism, but it may require additional external calibration for specific applications. It is recommended to follow the calibration procedure outlined in the datasheet, and to use the provided software tools to adjust the calibration coefficients.
  • The ADIS16505-1BMLZ is rated for operation from -40°C to +105°C, but it is recommended to derate the device for high-temperature operation to ensure optimal performance and reliability.
  • The ADIS16505-1BMLZ has a SPI-compatible interface, and can be interfaced with a microcontroller or FPGA using a standard SPI protocol. The device also has a dedicated interrupt pin for asynchronous data transfer.
  • The ADIS16505-1BMLZ has a typical power consumption of 35mA at 3.3V, but this can be reduced by using the device's power-down mode, reducing the sampling rate, or using a lower voltage supply.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADIS16505-1BMLZ Overview

Use the download button to access the ADIS16505-1BMLZ schematic symbol, PCB footprint, and 3D model.
