ADIS16507-2BMLZ - Analog Devices

Description: IMUs - Inertial Measurement Units 6 DOF Prec IMU, 40g (500 DPS DNR)

Download ADIS16507-2BMLZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADIS16507-2BMLZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

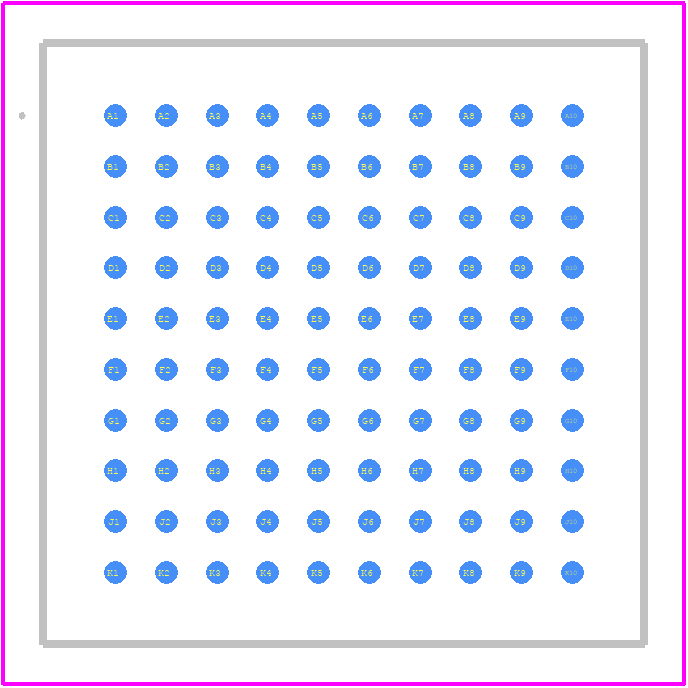

ADIS16507-2BMLZ - Analog Devices PCB footprint - Other - Other - ML-100-1
click to zoom
3D Models
ADIS16507-2BMLZ - Analog Devices - 3D model - Other - ML-100-1
click to zoom

ADIS16507-2BMLZ Details

  • Manufacturer Part Number:

    ADIS16507-2BMLZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    ML-100-1

  • ECCN Code:

    7A994

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-10-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B100

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA100,10X10,50

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    6.077 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

ADIS16507-2BMLZ Frequently Asked Questions (FAQs)

  • For optimal performance, it is recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device, and the power supply lines should be routed away from the sensitive analog signals.
  • The ADIS16507-2BMLZ has an internal calibration mechanism that can be accessed through the SPI interface. The device can be calibrated using the CAL_X, CAL_Y, and CAL_Z registers to adjust the scale factors and offset values. It is recommended to perform calibration at multiple temperatures and orientations to ensure optimal accuracy and performance.
  • The ADIS16507-2BMLZ is specified to operate over a temperature range of -40°C to +105°C. However, it is recommended to derate the device's performance at extreme temperatures, and to ensure proper thermal management to prevent overheating.
  • The ADIS16507-2BMLZ has a SPI-compatible interface that can be connected to a microcontroller or FPGA. The device requires a 3.3V power supply, and the SPI clock frequency should be set to 1 MHz or less. The device's registers can be accessed using the SPI interface, and the data can be read or written using the standard SPI protocol.
  • The ADIS16507-2BMLZ has a noise density of 0.15 mg/√Hz for the accelerometer and 0.05 °/s/√Hz for the gyroscope. To minimize noise in your application, it is recommended to use a low-pass filter, to reduce the bandwidth of the signals, and to use a high-quality power supply with low noise and ripple.
