A good PCB layout for the ADJ11005 should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stable output voltage regulation, make sure to use a stable input voltage, decouple the input and output with suitable capacitors, and provide a sufficient heat sink to prevent overheating. Also, ensure that the output capacitor is of high quality and has a low ESR.
The maximum allowed input voltage ripple for the ADJ11005 is typically around 1Vp-p. Exceeding this value may affect the device's performance and stability. It's recommended to use a high-quality input filter capacitor to reduce the input voltage ripple.
The ADJ11005 is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heat-sinked and that the ambient temperature is within the specified range.
The output voltage accuracy of the ADJ11005 can be calculated by considering the internal voltage reference accuracy, the resistor tolerance, and the output voltage divider ratio. The datasheet provides a formula to calculate the output voltage accuracy, which is typically around ±2% for the ADJ11005.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADJ11005 Overview

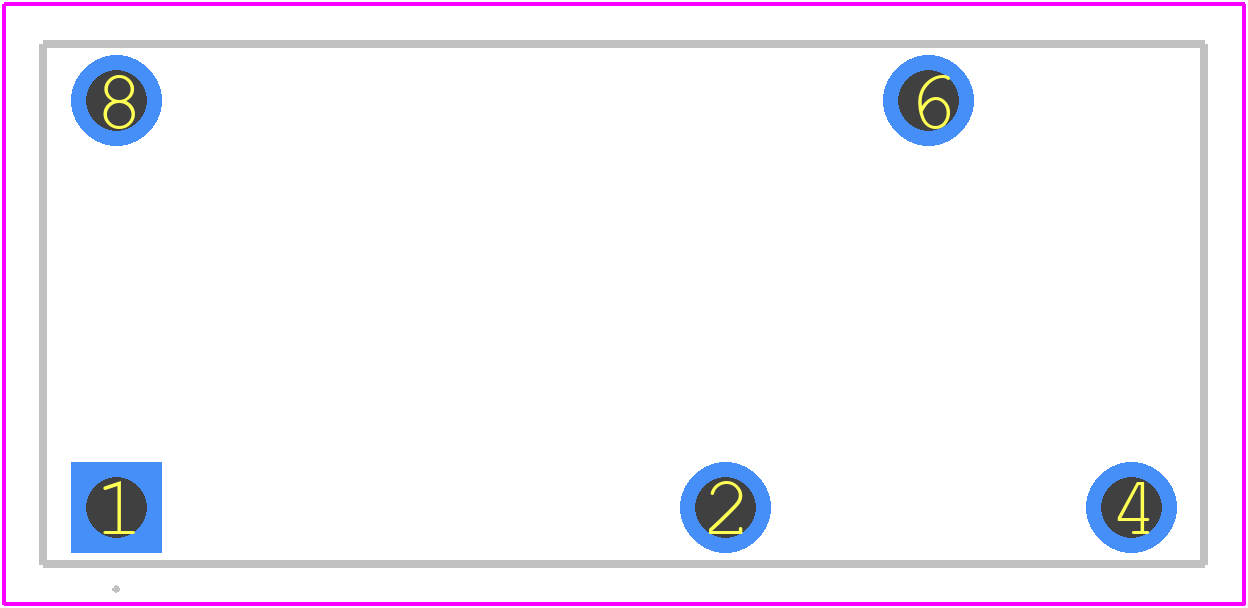

Use the download button to access the ADJ11005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ11,
or try a keyword search, such as Power/Signal Relays
