A good PCB layout for the ADJ12012 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure stable output voltage regulation, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A 10uF to 22uF ceramic capacitor is recommended. Also, ensure that the input voltage is within the recommended range and the device is operated within its specified temperature range.
Although the datasheet specifies a maximum input voltage of 12V, it's recommended to limit the input voltage to 10V to ensure reliable operation and to prevent damage to the device.
While the ADJ12012 is rated for operation up to 125°C, it's essential to consider the device's power dissipation and thermal resistance when operating in high-temperature environments. Ensure that the device is properly heat-sinked, and the junction temperature is kept below 125°C to prevent thermal shutdown or damage.
The output voltage of the ADJ12012 can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (1.25V), R1 is the resistance between the output and the adjust pin, and R2 is the resistance between the adjust pin and ground.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADJ12012 Overview

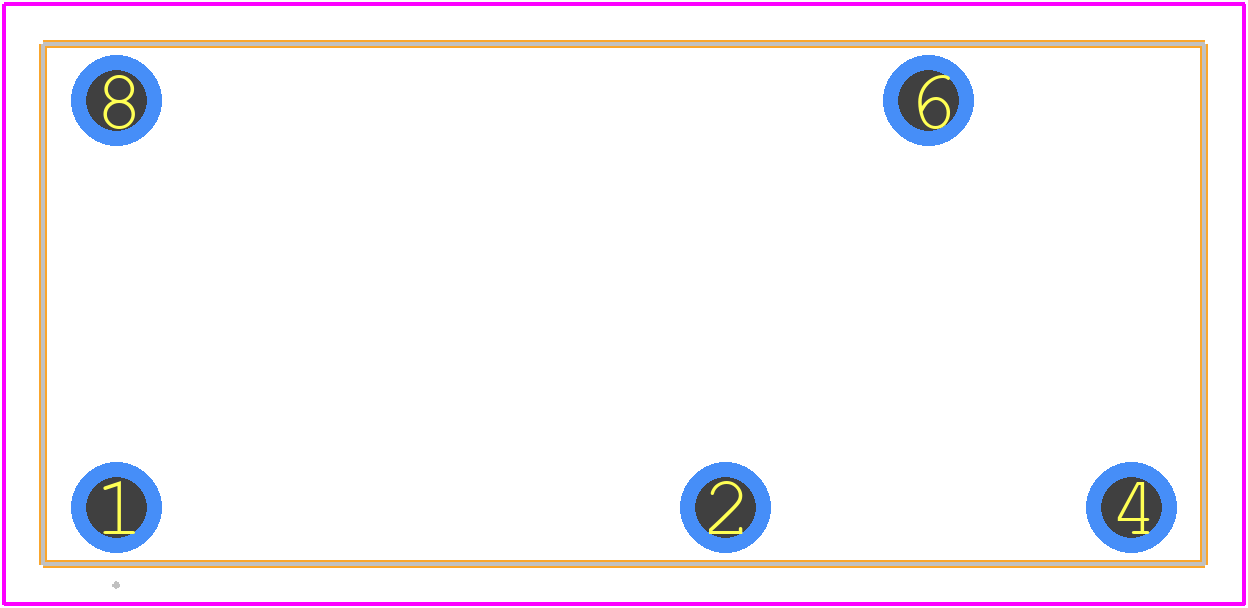

Use the download button to access the ADJ12012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ12,
or try a keyword search, such as Power/Signal Relays
