A good PCB layout for the ADJ13024 should ensure that the input and output pins are separated as much as possible to minimize noise coupling. Additionally, a solid ground plane and a low-impedance power supply are recommended to reduce noise and ensure stable operation.
The ADJ13024 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, to keep the junction temperature below 125°C. Additionally, ensure good airflow around the device and avoid blocking the thermal pads.
Although the datasheet specifies a minimum input voltage of 2.7V, it's recommended to operate the ADJ13024 with an input voltage between 3.0V and 5.5V for optimal performance and stability.
To ensure proper biasing, it's essential to follow the recommended biasing circuitry shown in the datasheet. Additionally, ensure that the input voltage is stable and within the recommended range, and that the output load is within the specified range to avoid oscillation or instability.
Although the datasheet doesn't specify a maximum output current, the ADJ13024 is designed to drive loads up to 10mA. However, it's recommended to limit the output current to 5mA or less to ensure reliable operation and prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADJ13024 Overview

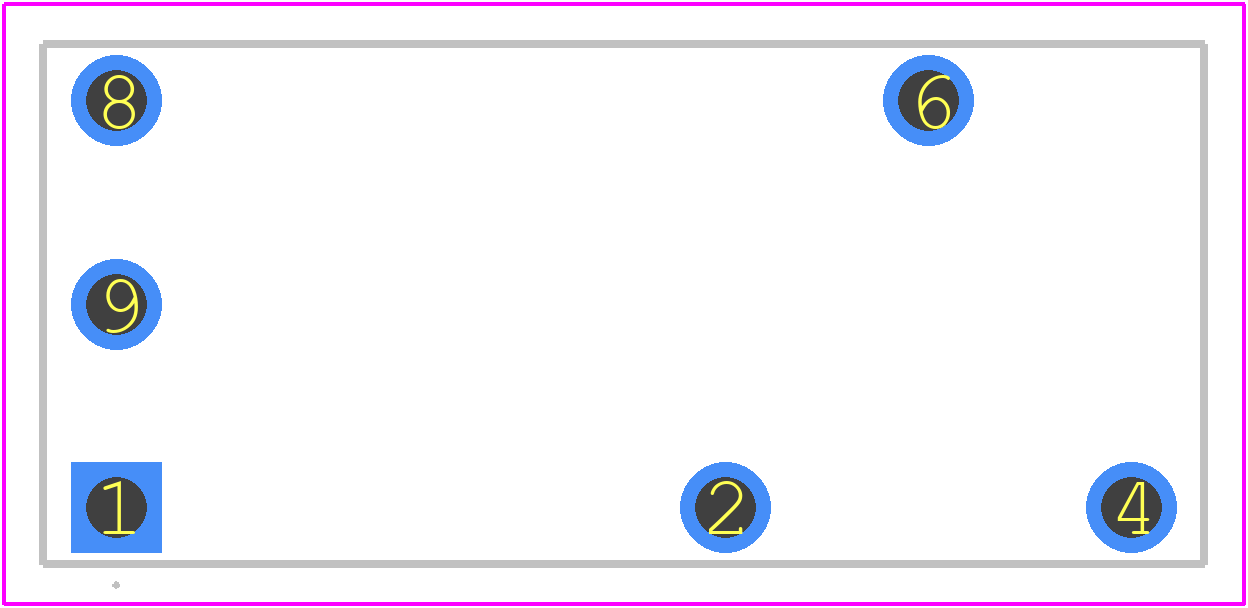

Use the download button to access the ADJ13024 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ13,
or try a keyword search, such as Power/Signal Relays
