A good PCB layout for the ADJ14005 should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the ADJ14005 operates within the specified temperature range, make sure to provide adequate heat dissipation, such as using a heat sink or a thermal pad, and avoid exposing the device to extreme temperatures during storage or operation.
Although the datasheet specifies a minimum input voltage of 2.7V, it's recommended to operate the device with an input voltage between 3.0V and 5.5V for optimal performance and to ensure the output voltage remains within the specified range.
The ADJ14005 has a built-in POR and BOR feature. To handle these features, ensure that the input voltage rises monotonically during power-up, and add a capacitor to the EN pin to filter out noise and prevent unwanted resets.
The ADJ14005 can deliver up to 1.5A of output current, but this may vary depending on the input voltage, output voltage, and ambient temperature. Be sure to check the device's thermal performance and adjust the output current accordingly to prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADJ14005 Overview

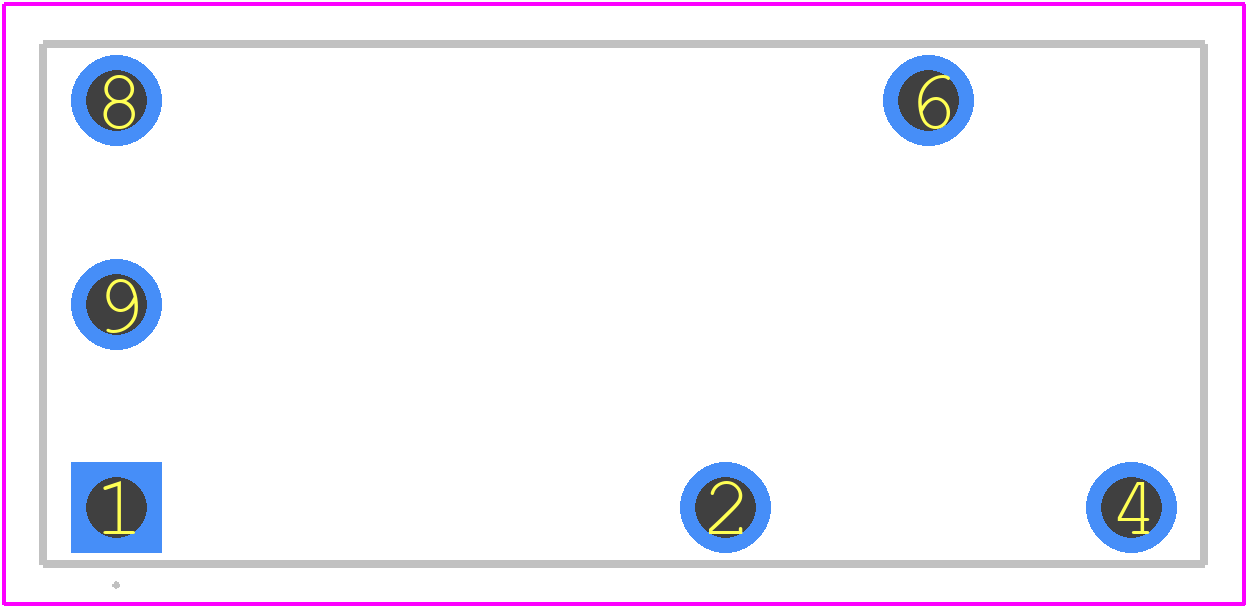

Use the download button to access the ADJ14005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ14,
or try a keyword search, such as Power/Signal Relays
