A good PCB layout for the ADJ14024 should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the ADJ14024 operates within the specified temperature range, make sure to provide adequate heat dissipation, such as using a heat sink or a thermal pad, and avoid exposing the device to extreme temperatures during storage or operation.
Although the datasheet specifies a minimum input voltage of 2.7V, it's recommended to operate the device with an input voltage between 3.0V and 5.5V for optimal performance and to ensure the output voltage regulation is within the specified tolerance.
Yes, the ADJ14024 is suitable for high-reliability and automotive applications. However, it's essential to follow Panasonic's guidelines for automotive applications, including using the device within the specified temperature range, ensuring proper PCB layout, and following the recommended operating conditions.
To troubleshoot issues with the ADJ14024, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout for any errors or omissions, and ensure that the device is properly soldered and connected. Also, review the application circuit and ensure it's within the recommended operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADJ14024 Overview

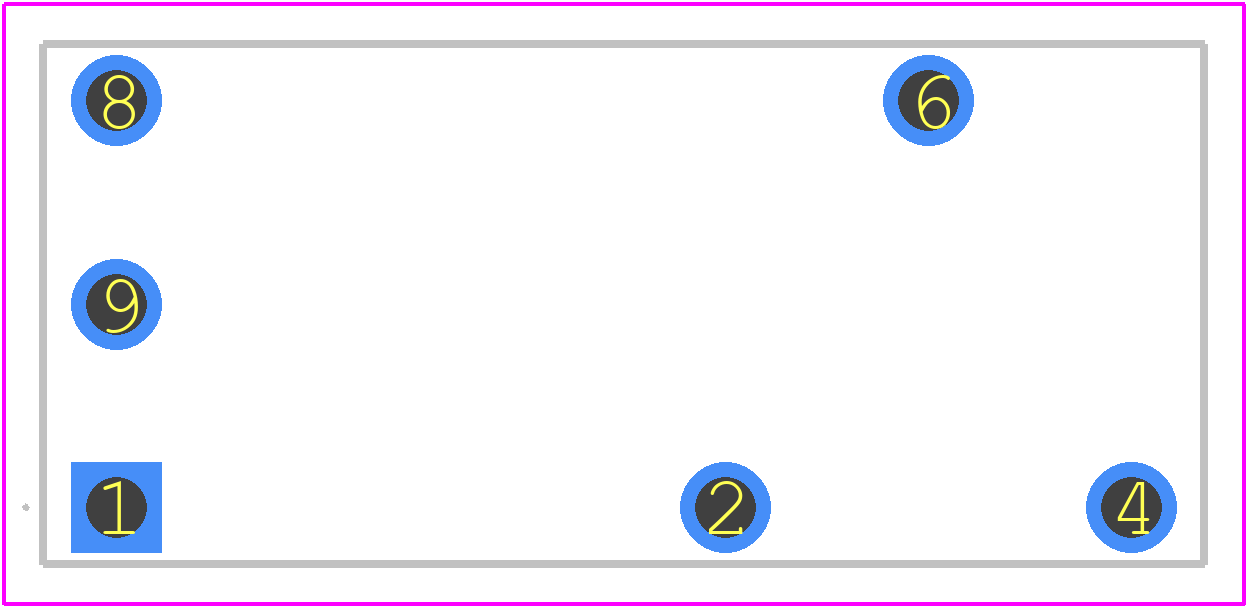

Use the download button to access the ADJ14024 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ14,
or try a keyword search, such as Power/Signal Relays
