A good PCB layout for the ADJ15024 should prioritize minimizing parasitic inductance and capacitance. Keep the input and output traces short and wide, and use a solid ground plane to reduce noise. Additionally, place decoupling capacitors close to the device to filter out high-frequency noise.
To ensure the ADJ15024 operates within its specified temperature range, provide adequate heat dissipation through a heat sink or thermal pad. Also, avoid exposing the device to extreme temperatures during storage or handling. Follow the recommended storage and handling guidelines provided by Panasonic.
While the datasheet specifies a maximum input voltage, it's recommended to operate the ADJ15024 within 10% of the nominal input voltage to ensure optimal performance and reliability. Exceeding the recommended input voltage range may lead to reduced performance, increased power consumption, or even device failure.
The ADJ15024 is designed to operate in a variety of environments, but high-vibration applications may require additional considerations. Ensure the device is properly secured to the PCB and consider using vibration-dampening materials or potting compounds to reduce the risk of mechanical stress or damage.
To troubleshoot issues with the ADJ15024, start by verifying the input voltage, output load, and PCB layout. Check for signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and input current. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADJ15024 Overview

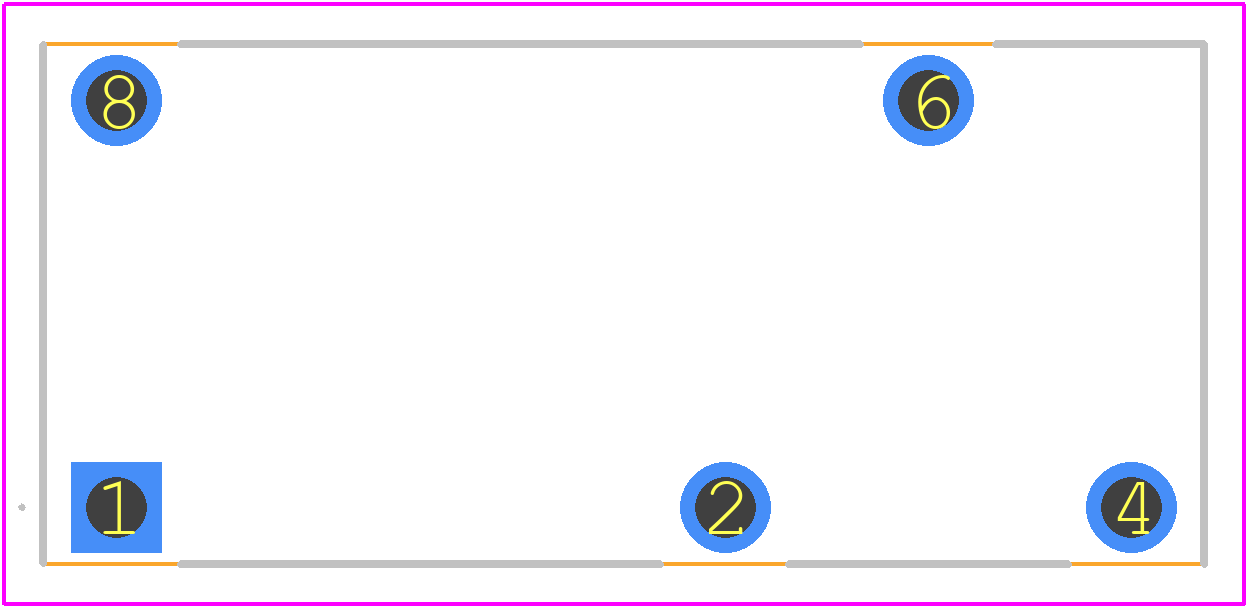

Use the download button to access the ADJ15024 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ15,
or try a keyword search, such as Power/Signal Relays
