A good PCB layout for the ADJ16024 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the ADJ16024 operates within its specified temperature range, it's essential to provide adequate heat dissipation. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat sources. Additionally, consider using thermal interface materials to improve heat transfer.
Although the datasheet specifies a minimum input voltage of 2.7V, it's recommended to operate the ADJ16024 with an input voltage between 3.0V and 5.5V for optimal performance and stability.
To handle ESD protection for the ADJ16024, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines. Additionally, follow proper handling and storage procedures to prevent ESD damage.
Although the datasheet specifies a maximum output current of 200mA, it's recommended to limit the output current to 150mA to ensure reliable operation and prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADJ16024 Overview

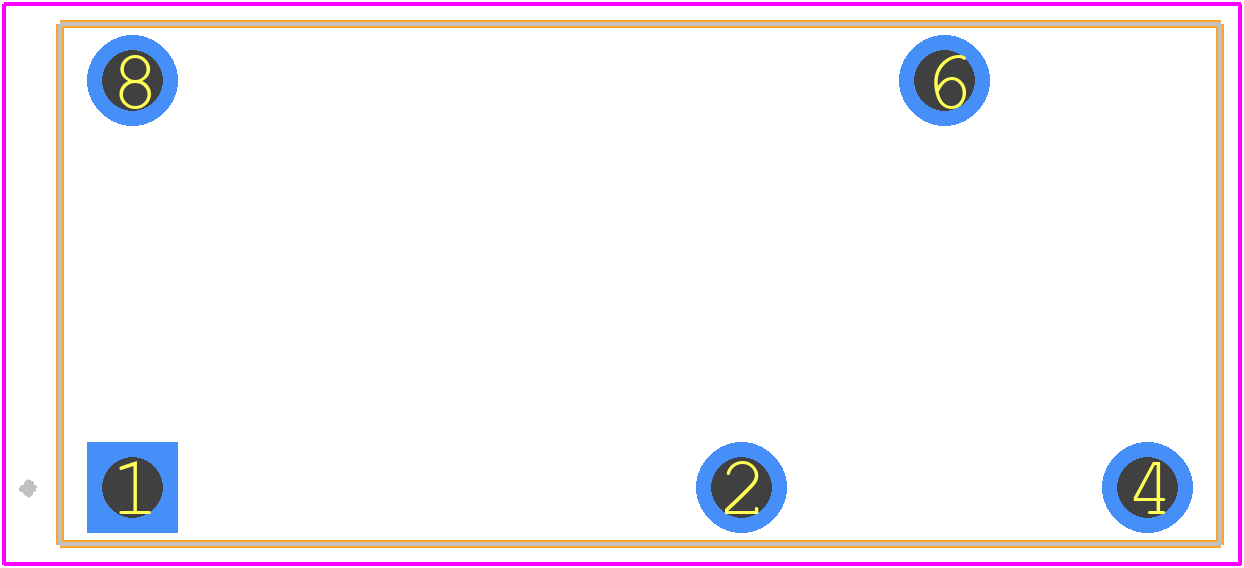

Use the download button to access the ADJ16024 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ16,
or try a keyword search, such as Power/Signal Relays
