A good PCB layout for the ADJ23005 should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the ADJ23005 operates within the recommended operating conditions, monitor the input voltage, output current, and ambient temperature. Make sure the input voltage is within the specified range (4.5V to 5.5V), the output current does not exceed 1A, and the ambient temperature is between -40°C and 85°C.
The recommended input capacitor value is 10uF to 22uF, and a low-ESR ceramic capacitor (X5R or X7R dielectric) is recommended. This helps to reduce noise and improve stability.
To handle thermal design and heat dissipation, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB layout guidelines. The device has a thermal shutdown feature that turns off the output when the junction temperature exceeds 150°C.
The recommended output capacitor value is 10uF to 22uF, and a low-ESR ceramic capacitor (X5R or X7R dielectric) is recommended. This helps to reduce noise and improve stability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADJ23005 Overview

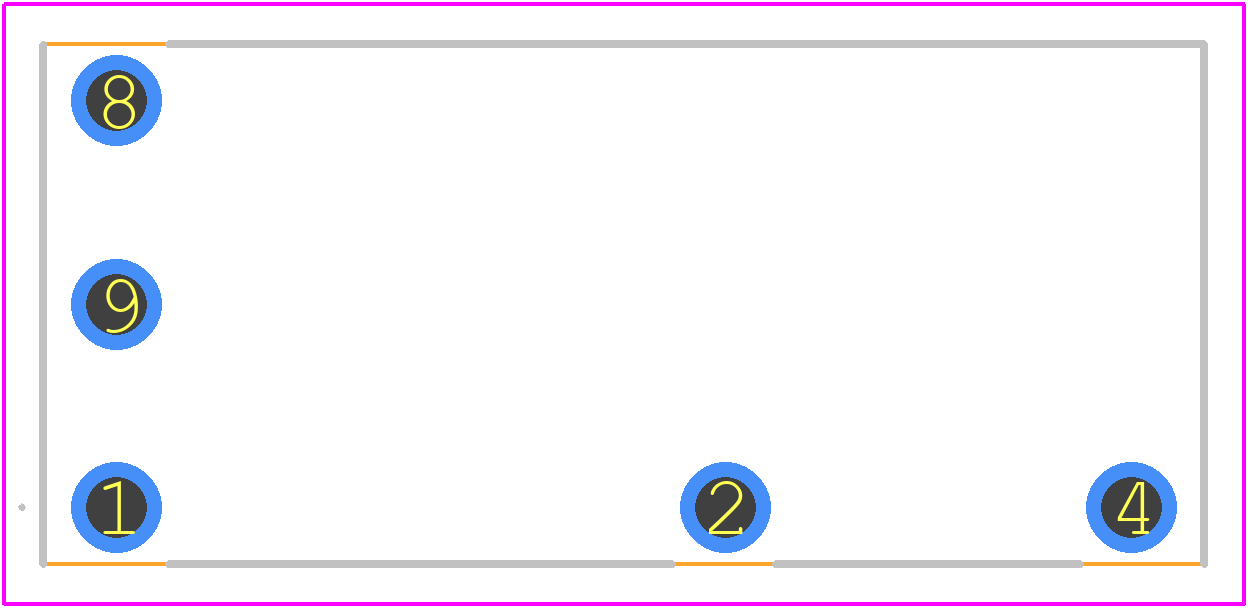

Use the download button to access the ADJ23005 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ23,
or try a keyword search, such as Power/Signal Relays
