ADJ24005 footprint, schematic symbol and 3D model by Panasonic

Symbol

click to zoom

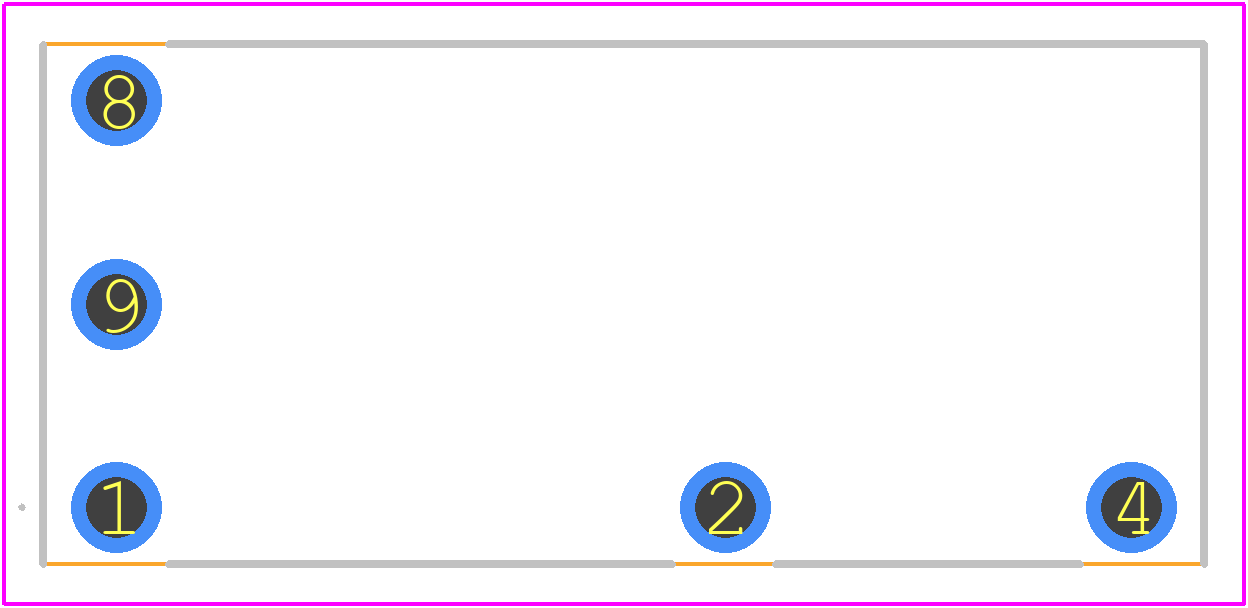

PCB Footprints

ADJ24005 - Panasonic PCB footprint - Other - Other - DJ_1FA_5Pin

click to zoom

3D Models

ADJ24005 - Panasonic - 3D model - Other - DJ_1FA_5Pin

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADJ24005
Part Number ADJ24005
Manufacturer Panasonic
Pin Count 5
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - DJ_1FA_5Pin
Released Date Nov 7, 2025
Last Modified Date Jan 16, 2026 11:52 AM UTC
Pinout / Pin List Click Here (Member Only)

ADJ24005 Details

Manufacturer Part Number:
ADJ24005
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Factory Lead Time:
8 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
7
Body Breadth:
13 mm
Body Height:
16 mm
Body Length or Diameter:
29 mm
Coil Current(DC)-Max:
0.05 A
Coil Operate Voltage(DC):
3.5 V
Coil Power:
250 mW
Coil Release Voltage(DC):
3.5 V
Coil Resistance:
100 Ω
Coil Voltage(DC)-Max:
5 V
Coil Voltage-Nom:
5 V
Coil/Input Supply Type:
DC
Contact (AC) Max Power Rating R Load:
4000VA@250VAC
Contact (AC) Max Rating R Load:
16A@250VAC
Contact Current(AC)-Max:
16 A
Contact Resistance:
100 mΩ
Contact Voltage(AC)-Max:
250 V
Contact/Output Supply Type:
AC
Electrical Life:
100000 Cycle(s)
End Contact Material:
Silver Tin Oxide
Input Switching Control Type:
Random
Insulation Resistance:
1000000000 Ω
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
10 ms
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX
Physical Dimension:
29mm x 13mm x 16mm
Reference Standard:
UL; VDE
Relay Action:
LATCHED
Relay Form:
1 FORM A
Relay Function:
SPST
Relay Type:
POWER/SIGNAL RELAY
Release Time:
10 ms
Sealing:
SEALED TYPE
Surface Mount:
NO
Terminal Length:
0.003500127000254001 inch
Termination Type:
SOLDER

ADJ24005 Frequently Asked Questions (FAQs)

A good PCB layout for the ADJ24005 should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the ADJ24005 operates within the specified temperature range, make sure to provide adequate heat dissipation, such as using a heat sink or a thermal pad, and avoid exposing the device to extreme temperatures during storage or operation.
Although the datasheet specifies a minimum input voltage of 2.7V, it's recommended to operate the device with an input voltage between 3.0V and 5.5V for optimal performance and to ensure the output voltage remains within the specified range.
The ADJ24005 has a built-in POR and BOR feature. To handle these features, ensure that the input voltage rises monotonically during power-up, and add a capacitor to the EN pin to filter out noise and prevent unwanted resets.
The ADJ24005 can deliver up to 500mA of output current. However, it's essential to consider the device's thermal limitations and ensure that the output current does not exceed the maximum allowed value to prevent overheating and damage.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ADJ24005 Overview

Use the download button to access the ADJ24005 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ADJ24, or try a keyword search, such as Power/Signal Relays
