ADJ24006 - Panasonic

ADJ24006 Details

• Manufacturer Part Number:

  ADJ24006

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7

• Body Breadth:

  13 mm

• Body Height:

  16 mm

• Body Length or Diameter:

  29 mm

• Coil Current(DC)-Max:

  0.042 A

• Coil Operate Voltage(DC):

  4.2 V

• Coil Power:

  250 mW

• Coil Release Voltage(DC):

  4.2 V

• Coil Resistance:

  144 Ω

• Coil Voltage(DC)-Max:

  6 V

• Coil Voltage-Nom:

  6 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  4000VA@250VAC

• Contact (AC) Max Rating R Load:

  16A@250VAC

• Contact Current(AC)-Max:

  16 A

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact/Output Supply Type:

  AC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

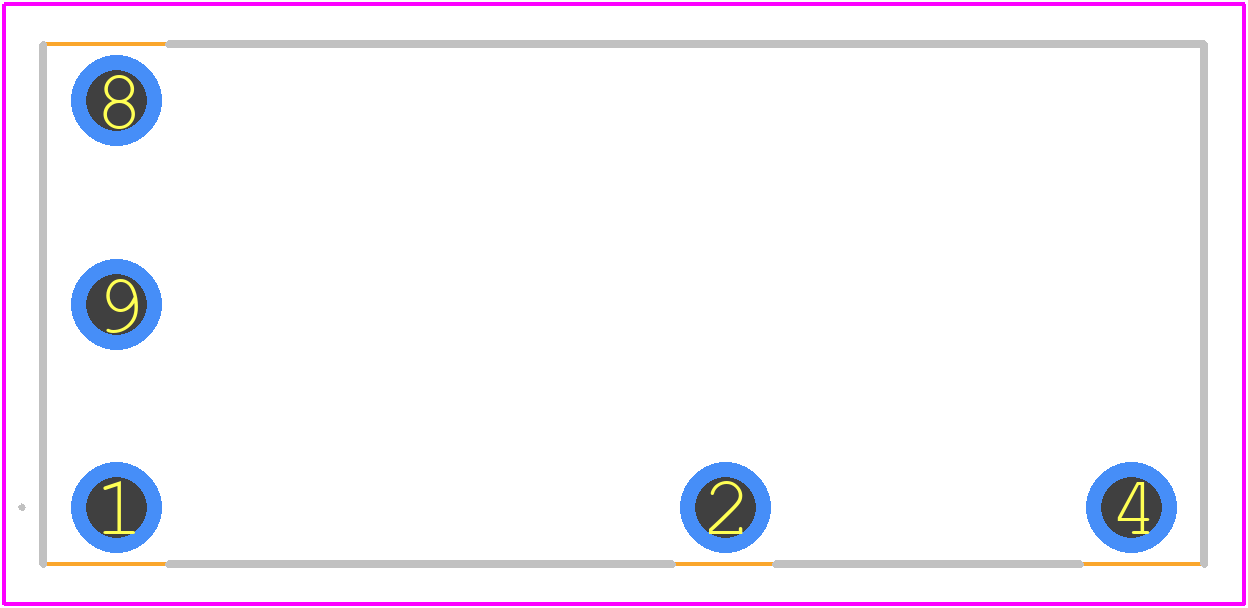

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operate Time:

  10 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  29mm x 13mm x 16mm

• Reference Standard:

  UL; VDE

• Relay Action:

  LATCHED

• Relay Form:

  1 FORM A

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Sealing:

  SEALED TYPE

• Surface Mount:

  NO

• Terminal Length:

  0.003500127000254001 inch

• Termination Type:

  SOLDER
