A good PCB layout for the ADJ52024 should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the ADJ52024 operates within the specified temperature range, make sure to provide adequate heat dissipation, such as using a heat sink or a thermal pad, and avoid exposing the device to extreme temperatures during storage or operation.
Although the datasheet specifies a minimum input voltage of 2.7V, it's recommended to operate the device with an input voltage between 3.0V and 5.5V for optimal performance and to ensure the output voltage accuracy.
To minimize output voltage noise and ripple, use a low-ESR output capacitor (e.g., ceramic or film capacitor) with a value between 1uF and 10uF, and consider adding a noise filter or a pi-filter to the output stage.
Although the datasheet specifies a maximum output current of 150mA, it's recommended to limit the output current to 100mA or less to ensure the device operates within its safe operating area and to prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADJ52024 Overview

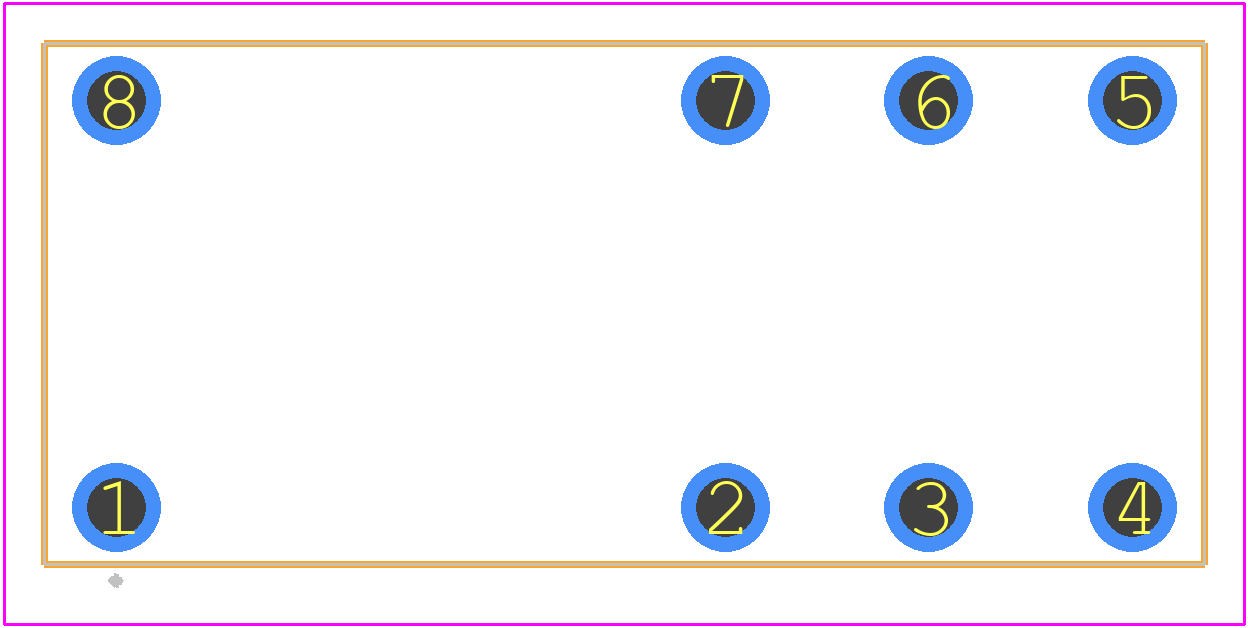

Use the download button to access the ADJ52024 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ52,
or try a keyword search, such as Power/Signal Relays
