A good PCB layout for the ADJ54024 should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and place decoupling capacitors close to the device. Additionally, ensure that the PCB material has a low dielectric constant to minimize signal distortion.
To ensure the ADJ54024 operates within the specified temperature range, provide adequate heat dissipation through a heat sink or thermal pad, and avoid exposing the device to extreme temperatures during storage or operation. Also, consider the thermal resistance of the PCB material and the device's package.
The recommended input signal amplitude for the ADJ54024 is typically between 100 mVpp to 1 Vpp, and the frequency range is up to 100 MHz. However, the optimal input signal amplitude and frequency range may vary depending on the specific application and desired output performance.
To minimize EMI in your design, use shielding, grounding, and filtering techniques. Place the ADJ54024 in a shielded enclosure, use a ground plane on the PCB, and add EMI filters to the input and output signals. Additionally, consider using a common-mode choke or ferrite bead to reduce radiation.
The typical output impedance of the ADJ54024 is around 50 ohms, but this can vary depending on the specific application and output load. It's essential to consider the output impedance when designing the output stage and selecting the load impedance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADJ54024 Overview

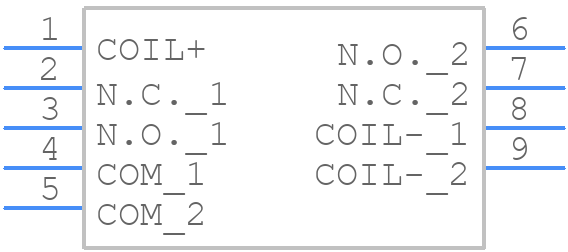

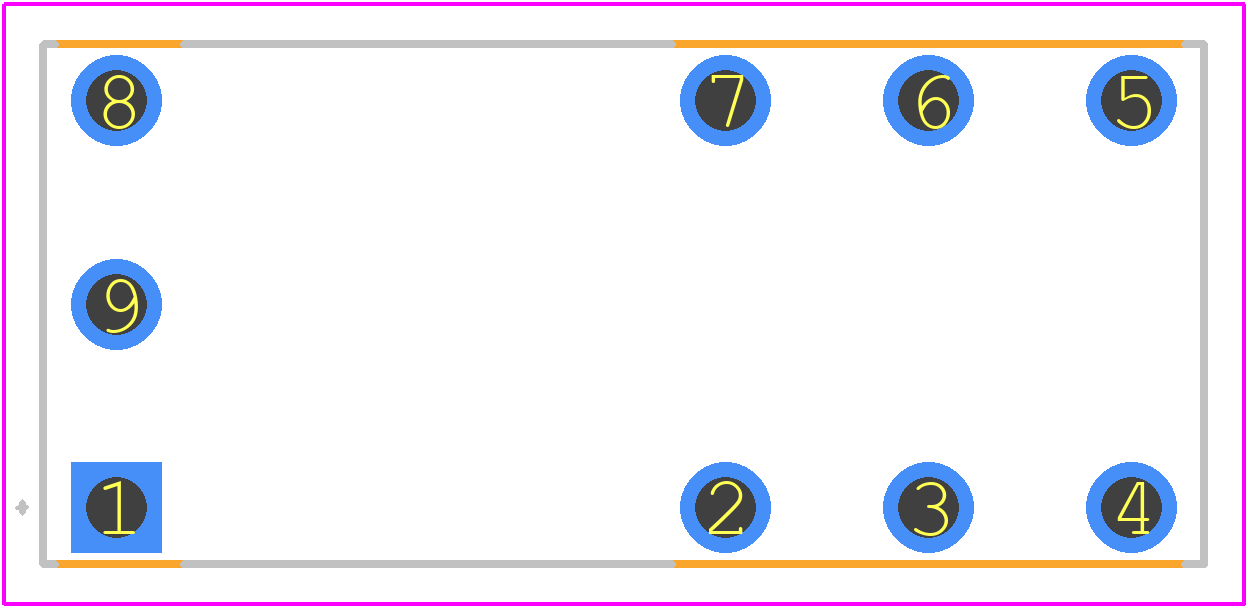

Use the download button to access the ADJ54024 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ54,
or try a keyword search, such as Power/Signal Relays
