A good PCB layout for the ADJ65024 should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the ADJ65024 operates within the specified temperature range, make sure to provide adequate heat dissipation, such as using a heat sink or a thermal pad, and avoid exposing the device to extreme temperatures during storage or operation.
Although the datasheet specifies a minimum input voltage of 6.5V, it's recommended to operate the device with an input voltage between 7V to 12V for optimal performance and to ensure the output voltage regulation is within the specified range.
To protect the ADJ65024 from overvoltage and undervoltage conditions, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits, such as a voltage supervisor or a voltage detector, to prevent damage to the device and ensure reliable operation.
The maximum output current capability of the ADJ65024 is 2A, but it's recommended to derate the output current based on the ambient temperature and the device's power dissipation to ensure reliable operation and prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADJ65024 Overview

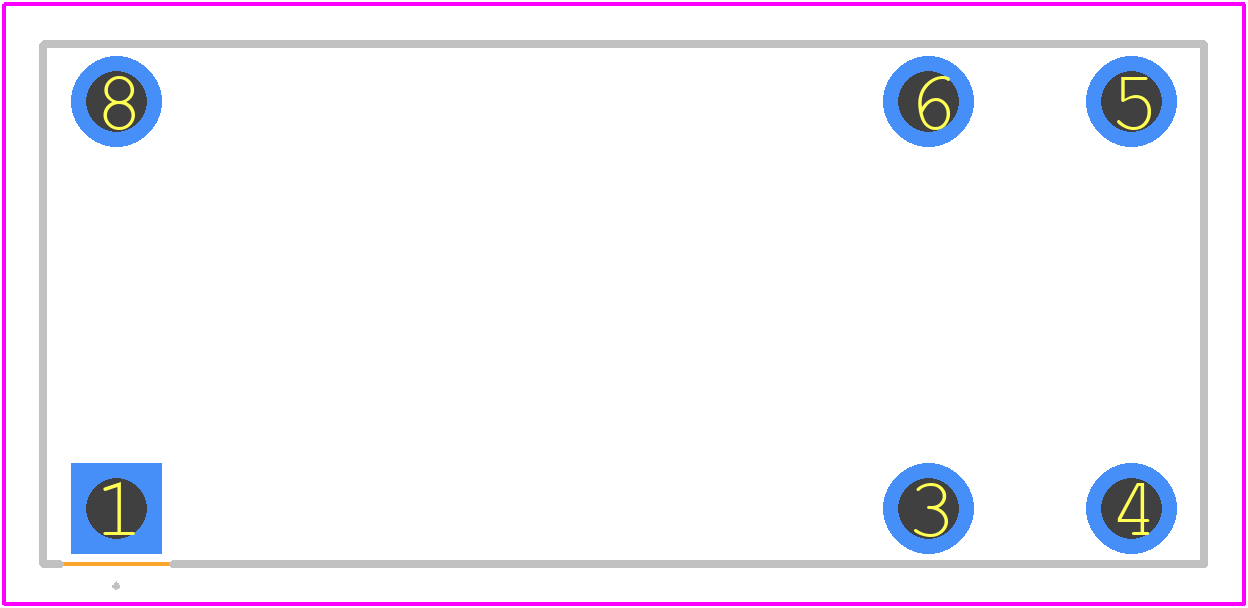

Use the download button to access the ADJ65024 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADJ65,
or try a keyword search, such as Power/Signal Relays
