ADJH21012 - Panasonic

Description: PANASONIC ELECTRIC WORKS - ADJH21012 - POWER RELAY, SPST-NO, 50A, 277VAC, TH

Download ADJH21012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

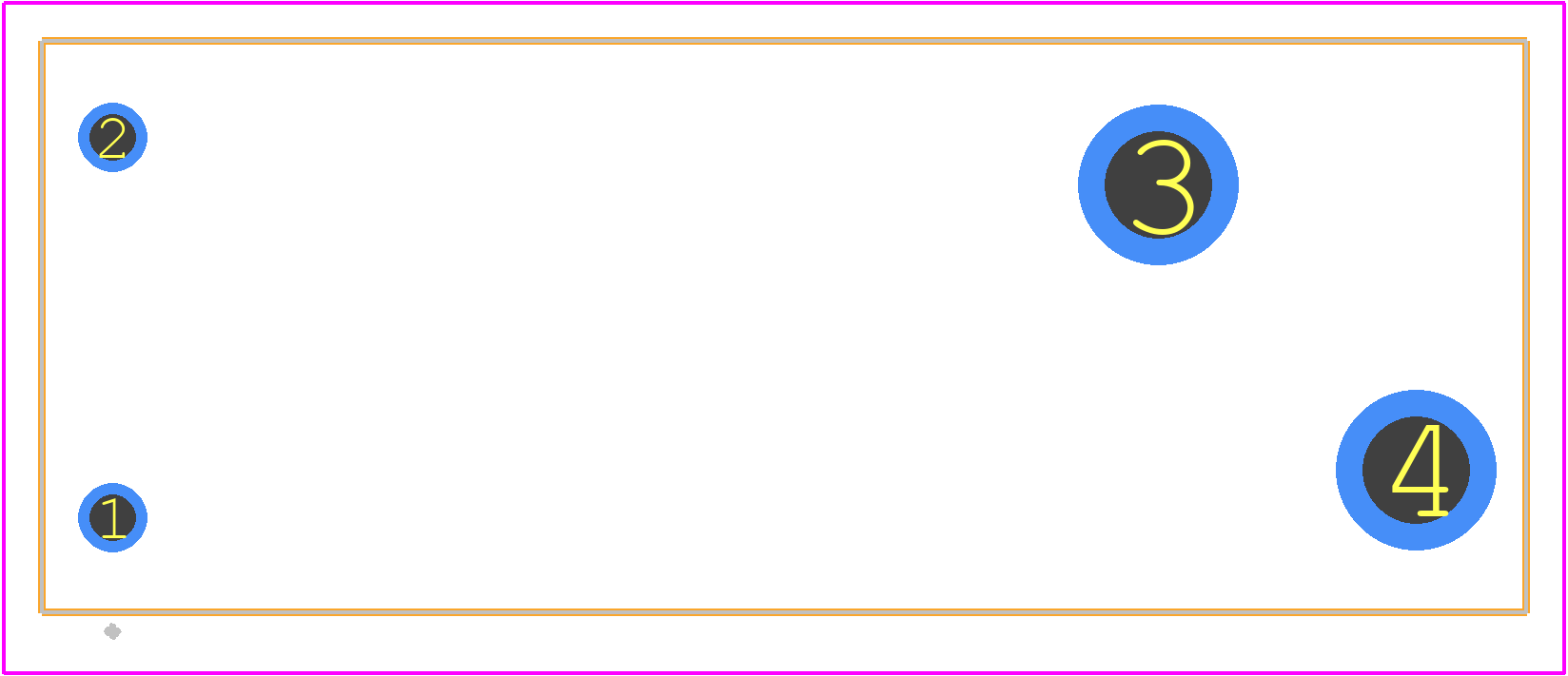

ADJH21012 - Panasonic PCB footprint - Other - Other - ADJH21012
click to zoom
3D Models
ADJH21012 - Panasonic  - 3D model - Other - ADJH21012
click to zoom

ADJH21012 Details

  • Manufacturer Part Number:

    ADJH21012

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.75

  • Body Breadth:

    15 mm

  • Body Height:

    30.2 mm

  • Body Length or Diameter:

    39 mm

  • Coil Current(DC)-Max:

    0.083 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    1000 mW

  • Coil Release Voltage(DC):

    9 V

  • Coil Resistance:

    144 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    50A@480VAC

  • Contact Current(AC)-Max:

    50 A

  • Contact Voltage(AC)-Max:

    480 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    10000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    39mm x 15mm x 30.2mm

  • Reference Standard:

    CUL; UL; VDE

  • Relay Action:

    LATCHED

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    20 ms

  • Sealing:

    MOISTURE PROOF

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ADJH21012 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADJH21012 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the ADJH21012 operates within its recommended operating conditions, monitor the input voltage, output current, and ambient temperature. Ensure the input voltage is within the recommended range of 2.7V to 5.5V, and the output current does not exceed 1A. Also, keep the ambient temperature between -40°C to 85°C.
  • The ADJH21012 has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid high ambient temperatures. Also, keep the device away from heat sources and ensure proper thermal conduction.
  • To troubleshoot issues with the ADJH21012, start by checking the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range and the output voltage is within the specified tolerance. Check for short circuits, overheating, and incorrect PCB layout. Consult the datasheet and application notes for guidance.
  • Yes, to minimize EMI/EMC issues with the ADJH21012, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines. Also, ensure good grounding and use a low-pass filter on the output if necessary.
