ADJH23105 Frequently Asked Questions (FAQs)

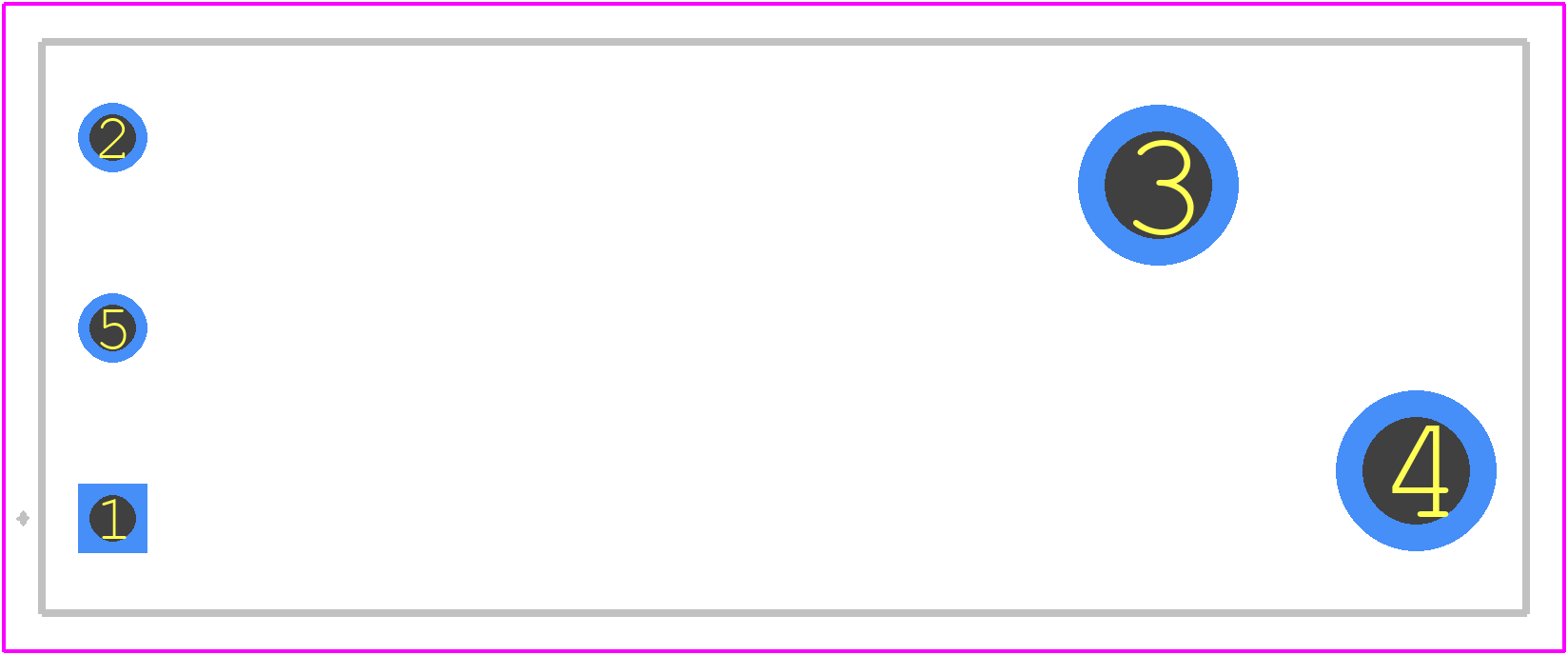

• What is the recommended PCB layout for optimal performance?
  A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Additionally, ensure that the input and output pins are separated to minimize crosstalk.
• How do I ensure the device operates within the specified temperature range?
  Implement a thermal management system, such as a heat sink or thermal pad, to maintain a temperature range of -40°C to 125°C. Ensure good airflow and avoid blocking airflow around the device.
• What is the recommended input voltage range for the ADJH23105?
  The recommended input voltage range is 2.7V to 5.5V. Operating outside this range may affect device performance and reliability.
• Can I use the ADJH23105 in a high-frequency switching circuit?
  Yes, but ensure that the device is properly decoupled and bypassed to minimize high-frequency noise and ringing. Additionally, consider the device's switching characteristics and ensure it meets your specific application requirements.
• How do I handle ESD protection for the ADJH23105?
  Implement ESD protection measures such as TVS diodes, ESD protection ICs, or ESD-resistant components. Ensure that the device is handled and stored in an ESD-controlled environment.
