ADL5303ACPZ-R7 - Analog Devices

Description: SP Amp LOG Amp Single R-R O/P 5.5V 16-Pin LFCSP EP T/R

Download ADL5303ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

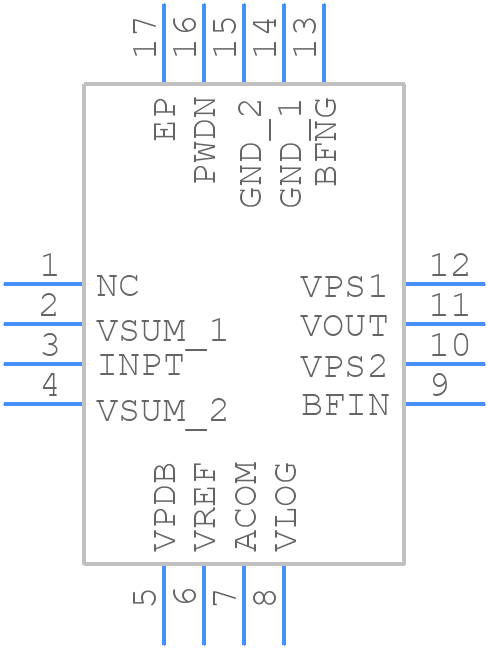

ADL5303ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5303ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22 16-Lead LFCSP
click to zoom
3D Models
ADL5303ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-22 16-Lead LFCSP
click to zoom

ADL5303ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5303ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:39.133

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

ADL5303ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL5303ACPZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VPOS pin to a stable voltage source between 4.5V and 5.5V, and the VNEG pin to a stable voltage source between -4.5V and -5.5V. The voltage difference between VPOS and VNEG should be between 8V and 11V.
  • The recommended input impedance for the ADL5303ACPZ-R7 is 50 ohms. This ensures optimal performance and minimizes signal reflections.
  • The output of the ADL5303ACPZ-R7 is a current output, so it requires a transimpedance amplifier (TIA) or a current-to-voltage converter to convert the current output to a voltage signal. The TIA or converter should be designed to match the output impedance of the ADL5303ACPZ-R7.
  • The maximum power dissipation of the ADL5303ACPZ-R7 is 1.4W. It is essential to ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range to prevent overheating.
