ADL5309ACBZ-R7 - Analog Devices

Description: Dual, 188 dB Range, 10 pA to 25 mA, Logarithmic Converter

Download ADL5309ACBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

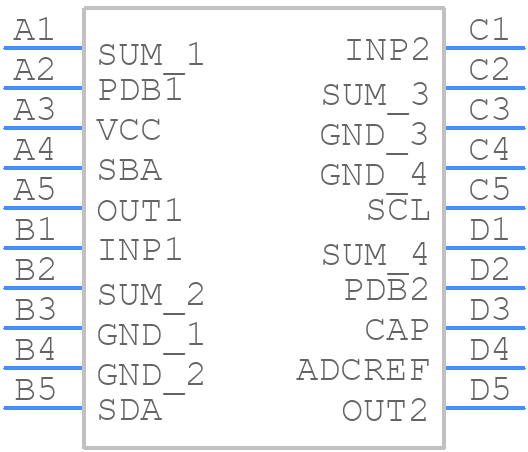

ADL5309ACBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5309ACBZ-R7 - Analog Devices PCB footprint - BGA - BGA - CHIPS W/SOLDER BUMPS/WLCSP-1
click to zoom
3D Models
ADL5309ACBZ-R7 - Analog Devices - 3D model - BGA - CHIPS W/SOLDER BUMPS/WLCSP-1
click to zoom

ADL5309ACBZ-R7 Details

  • Manufacturer Part Number:

    ADL5309ACBZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Moisture Sensitivity Level:

    1

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL5309ACBZ-R7 Overview

Use the download button to access the ADL5309ACBZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL53, or try a keyword search, such as Analog Computational Functions
