ADL5315ACPZ-R7 - Analog Devices

Description: ANALOG DEVICES - ADL5315ACPZ-R7 - HIGH-SIDE CURRENT MIRROR, LFCSP-8

Download ADL5315ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

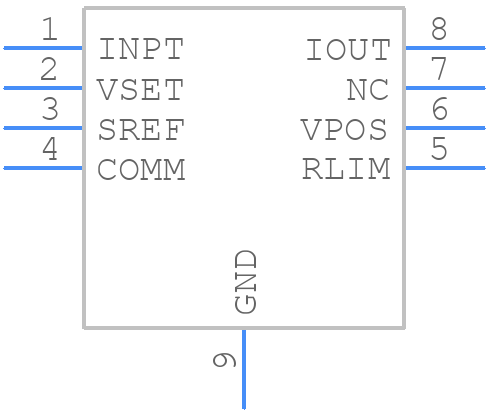

ADL5315ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5315ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - ADL5315ACPZ-R7-1
click to zoom
3D Models
ADL5315ACPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - ADL5315ACPZ-R7-1
click to zoom

ADL5315ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5315ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    2 X 3 MM, LEAD FREE, LFCSP-VD, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-23

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

ADL5315ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the input and output traces short and away from digital signals. Use a common mode choke or ferrite bead to filter the input power.
  • Ensure the output capacitor is within the recommended range (10uF to 100uF). Use a low-ESR capacitor and keep the output capacitor close to the device. Avoid using a capacitor with high ESL (Equivalent Series Inductance).
  • The maximum input voltage is 6.5V. Exceeding this voltage may damage the device. Use a voltage regulator or a voltage limiter to ensure the input voltage is within the recommended range.
  • Use a low-pass filter (e.g., RC filter) on the output. Add a capacitor (e.g., 10uF) in parallel with the output capacitor to reduce high-frequency noise. Ensure the output capacitor is of high quality and has low ESL.
  • The ADL5315ACPZ-R7 is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures. Ensure proper thermal management and consider using a heat sink if the device is expected to operate in a high-temperature environment.
