ADL5330ACPZ-R2 - Analog Devices

Description: ADL5330ACPZ-R2 Analog Devices, RF Amplifier Gain, 32 dB 3 GHz, 24-Pin LFCSP

Download ADL5330ACPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

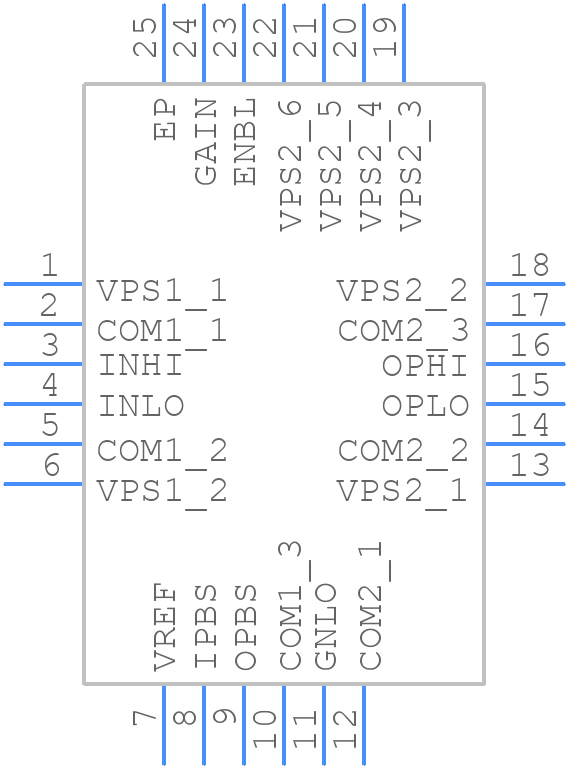

ADL5330ACPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5330ACPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-14-1
click to zoom
3D Models
ADL5330ACPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-14-1
click to zoom

ADL5330ACPZ-R2 Details

  • Manufacturer Part Number:

    ADL5330ACPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP_VQ-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADL5330ACPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL5330ACPZ-R2 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Analog Devices application note AN-0971 for more details.
  • The ADL5330ACPZ-R2 requires a bias voltage of 5V to 12V. Ensure that the bias voltage is stable and noise-free. A decoupling capacitor of 10uF to 100uF should be placed close to the device to filter out noise. The bias voltage should be applied to the VCC pin, and the GND pin should be connected to a solid ground plane.
  • The ADL5330ACPZ-R2 can handle input signal amplitudes up to 2V peak-to-peak. Exceeding this limit may result in distortion or damage to the device. Ensure that the input signal is properly attenuated or amplified to stay within this limit.
  • To troubleshoot issues with the ADL5330ACPZ-R2, start by verifying the power supply and bias voltage. Check for proper termination and impedance matching of the input and output signals. Use an oscilloscope to verify the input and output waveforms. If issues persist, consult the Analog Devices support team or refer to the device's evaluation board documentation.
  • Yes, the ADL5330ACPZ-R2 is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and layout guidelines, as well as to implement adequate thermal management and ESD protection to ensure the device's reliability in high-reliability applications.
