ADL5330ACPZ-REEL7 - Analog Devices

Description: Special Purpose Amplifiers RF Variable Gain Amplifier

Download ADL5330ACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

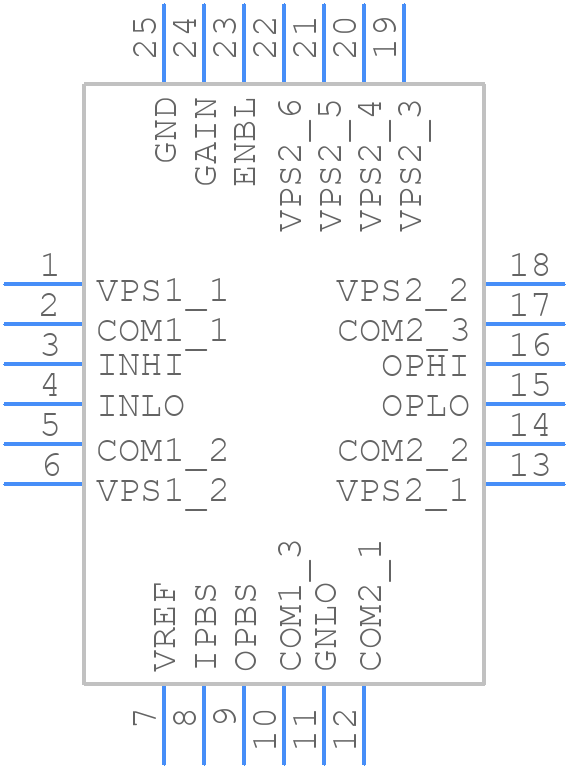

ADL5330ACPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5330ACPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - A750KS227M1EEAE015
click to zoom
3D Models
ADL5330ACPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - A750KS227M1EEAE015
click to zoom

ADL5330ACPZ-REEL7 Details

  • Manufacturer Part Number:

    ADL5330ACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP_VQ-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADL5330ACPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL5330ACPZ-REEL7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the power supply decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VPOS pin to a stable voltage source between 4.5V and 5.5V, and the VNEG pin to a stable voltage source between -4.5V and -5.5V. The voltage difference between VPOS and VNEG should be between 9V and 11V. Additionally, decouple the power supplies with 10uF capacitors.
  • The recommended input impedance for the ADL5330ACPZ-REEL7 is 50 ohms. This ensures maximum power transfer and optimal performance. Impedance mismatch can lead to signal reflections and reduced performance.
  • The ADL5330ACPZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device temperature below 125°C. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device.
  • The ADL5330ACPZ-REEL7 has built-in ESD protection, but additional protection is recommended. Use ESD protection diodes or TVS diodes on the input and output lines to protect against electrostatic discharge.
