ADL5330ACPZ-WP - Analog Devices

Description: RF Amp Chip Single Gain Amp 3GHz 5.25V 24-Pin LFCSP EP Tray

Download ADL5330ACPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

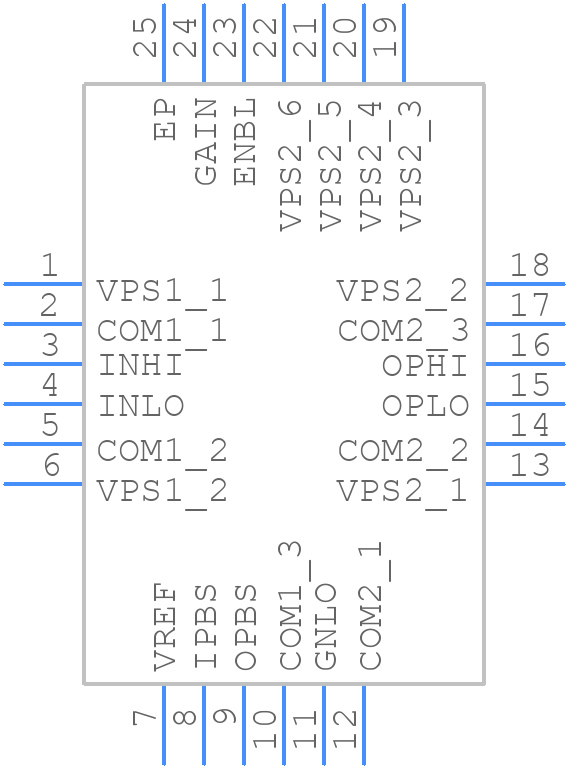

ADL5330ACPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5330ACPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-14
click to zoom
3D Models
ADL5330ACPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-14
click to zoom

ADL5330ACPZ-WP Details

  • Manufacturer Part Number:

    ADL5330ACPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP_VQ-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADL5330ACPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL5330ACPZ-WP involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the ADL5330 evaluation board layout for a reference design.
  • The ADL5330ACPZ-WP requires a bias voltage of 5V ± 10% on the VCC pin, and a bias current of 10mA to 20mA on the VBIAS pin. Ensure that the bias voltage and current are stable and noise-free, and that the device is operated within the recommended operating temperature range.
  • The ADL5330ACPZ-WP can handle input powers up to +20dBm (100mW) without damage. However, the device is typically operated at input powers below +10dBm (10mW) for optimal performance and linearity.
  • Common issues with the ADL5330ACPZ-WP can be troubleshooted by checking the input and output signal levels, ensuring proper biasing and decoupling, and verifying that the device is operated within the recommended operating conditions. Additionally, checking for PCB layout issues, such as poor grounding or signal routing, can help identify and resolve problems.
  • The ADL5330ACPZ-WP is a commercial-grade device with an operating temperature range of -40°C to +85°C. While it can be used in some high-reliability applications, it may not be suitable for extreme high-temperature or high-reliability applications. For such applications, consider using a higher-reliability or industrial-grade version of the device, such as the ADL5330ACPZ-RL or ADL5330ACPZ-IP.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL5330ACPZ-WP Overview

Use the download button to access the ADL5330ACPZ-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL53, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
