ADL5331ACPZ-R7 - Analog Devices

Description: Differential Amplifiers Broadband Differential VGA

Download ADL5331ACPZ-R7 Model
Schematic

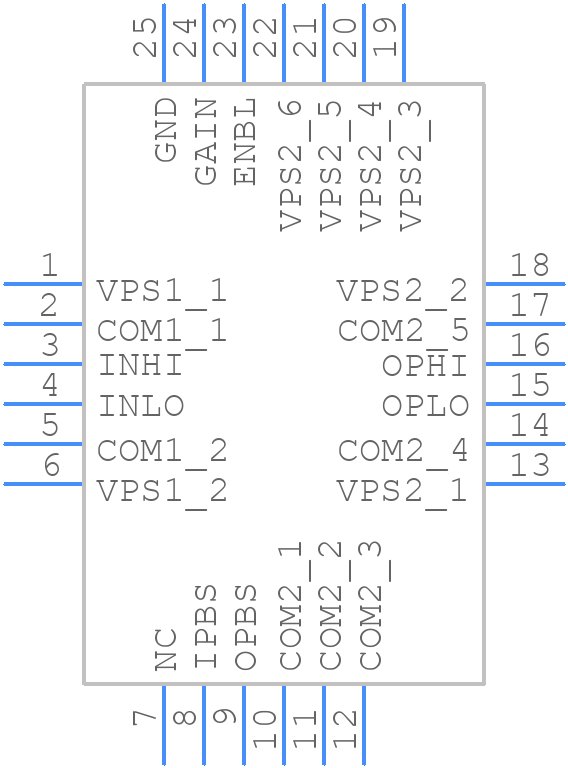

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL5331ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-14-1
click to zoom
3D Models
ADL5331ACPZ-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - (CP-24-14-1
click to zoom

ADL5331ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5331ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:39.275

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    MO-220WGGD-8, LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    20 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    5 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    1200 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE GAIN AMPLIFIER

  • Supply Current-Max:

    240 mA

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

ADL5331ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL5331ACPZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VPOS pin to a stable voltage source between 4.5V and 5.5V, and the VNEG pin to a stable voltage source between -4.5V and -5.5V. The voltage difference between VPOS and VNEG should be between 8V and 11V.
  • The recommended input impedance for the ADL5331ACPZ-R7 is 50 ohms. This ensures maximum power transfer and optimal performance.
  • To handle ESD protection, use ESD protection diodes or a TVS (Transient Voltage Suppressor) device at the input and output pins. Additionally, follow proper handling and storage procedures to prevent ESD damage.
  • To manage thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking airflow around the device. The maximum junction temperature is 150°C.
