ADL5350ACPZ-WP - Analog Devices

Description: RF Mixer IC Cellular, CDMA, GSM - 750MHz ~ 4GHz 8-LFCSP-VD (3x2)

Download ADL5350ACPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

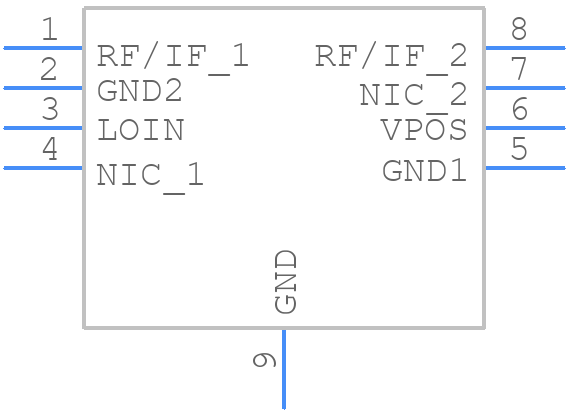

ADL5350ACPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5350ACPZ-WP - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-8-23)
click to zoom
3D Models
ADL5350ACPZ-WP - Analog Devices - 3D model - Small Outline No-lead - (CP-8-23)
click to zoom

ADL5350ACPZ-WP Details

  • Manufacturer Part Number:

    ADL5350ACPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-23

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn)

ADL5350ACPZ-WP Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the ADL5350 evaluation board documentation, which can be found on the Analog Devices website. The layout should be followed closely to ensure optimal results.
  • Optimizing the performance of the ADL5350ACPZ-WP requires careful attention to the input and output matching networks, as well as the power supply decoupling. Refer to the ADL5350 evaluation board documentation for guidance on optimizing performance.
  • The maximum operating temperature of the ADL5350ACPZ-WP is 125°C, as specified in the datasheet. Operating the device above this temperature can result in reduced performance and reliability.
  • While the ADL5350ACPZ-WP is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may require additional circuitry and may impact the device's performance.
  • The recommended power supply voltage for the ADL5350ACPZ-WP is 5V, as specified in the datasheet. Operating the device at a different voltage may impact its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL5350ACPZ-WP Overview

Use the download button to access the ADL5350ACPZ-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL53, or try a keyword search, such as RF/Microwave Up/Down Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
