ADL5355ACPZ-R7 - Analog Devices

Description: LO Buffer, IF Amplifier, and RF Balun

Download ADL5355ACPZ-R7 Model

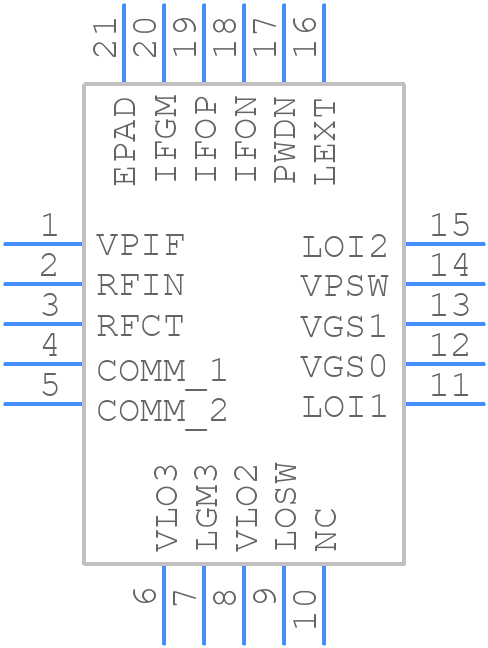

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL5355ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-9 (LFCSP_WQ)
click to zoom
3D Models
ADL5355ACPZ-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-20-9 (LFCSP_WQ)
click to zoom

ADL5355ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5355ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, CP-20-5, MO-220-VHHC, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-9

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    20

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    1200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC20,.20SQ,25

  • Power Supplies:

    3.3/5 V

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn)

ADL5355ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common-mode choke or a ferrite bead to filter the power supply.
  • The ADL5355ACPZ-R7 requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The bias voltage (VBIAS) should be set to 2.5V using a voltage divider or a dedicated voltage reference.
  • The ADL5355ACPZ-R7 can handle input powers up to +10dBm. Exceeding this limit may cause compression or damage to the device. Use an attenuator or a limiter to ensure the input power is within the recommended range.
  • The ADL5355ACPZ-R7 is a broadband amplifier, but it can be optimized for a specific frequency band by adjusting the input and output matching networks. Use a network analyzer or simulation software to optimize the matching networks for the desired frequency band.
  • The typical current consumption of the ADL5355ACPZ-R7 is 120mA at 5V supply voltage. However, this can vary depending on the input power, frequency, and operating conditions.
