ADL5356ACPZ-R7 footprint, schematic symbol and 3D model by Analog Devices

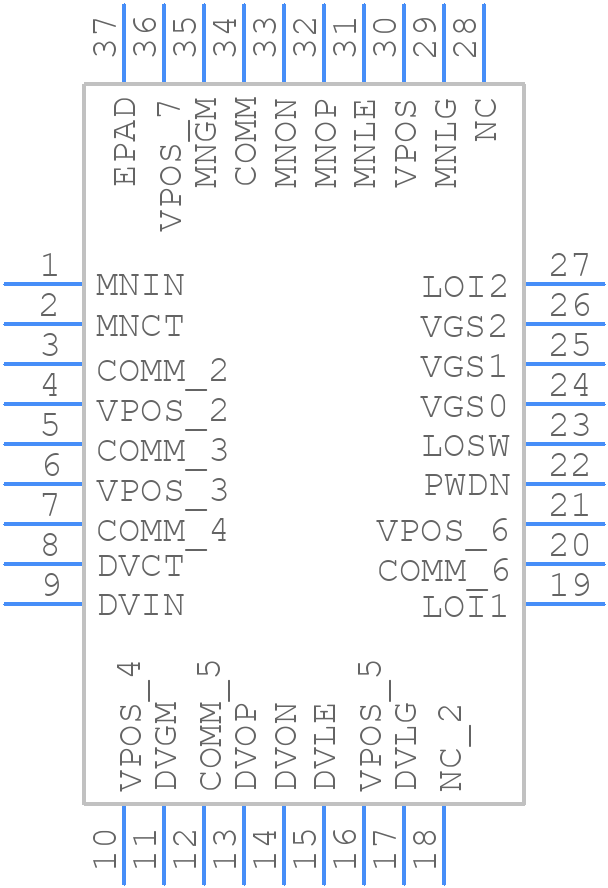

Symbol

click to zoom

PCB Footprints

ADL5356ACPZ-R7 - Analog Devices PCB footprint - Other - Other - QFN50P600X600X100-37N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADL5356ACPZ-R7
Part Number ADL5356ACPZ-R7
Manufacturer Analog Devices
Pin Count 37
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFN50P600X600X100-37N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

ADL5356ACPZ-R7 Details

Manufacturer Part Number:
ADL5356ACPZ-R7
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
6 X 6 MM, ROHS COMPLIANT, MO-220VJJD-1, LFCSP-36
Pin Count:
36
Manufacturer Package Code:
CP-36-4
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
Additional Feature:
HIGH ISOLATION
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
36
Operating Frequency-Max:
2500 MHz
Operating Frequency-Min:
1200 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC36,.25SQ,20
Power Supplies:
5 V
RF/Microwave Device Type:
DOUBLE BALANCED
Surface Mount:
YES
Technology:
BICMOS
Terminal Finish:
Matte Tin (Sn)

ADL5356ACPZ-R7 Frequently Asked Questions (FAQs)

A good PCB layout for the ADL5356ACPZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the ADL5356 evaluation board layout as a reference.
The ADL5356ACPZ-R7 requires a bias voltage of 5V ± 10% and a bias current of 10mA to 30mA. Ensure that the bias voltage is clean and free of noise, and that the bias current is within the recommended range. A voltage regulator and a low-pass filter can be used to achieve this.
The ADL5356ACPZ-R7 can handle input powers up to +15dBm. However, it's recommended to operate the device at input powers below +10dBm to ensure optimal performance and to prevent damage to the device.
The ADL5356ACPZ-R7 has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. The device requires a clock signal, a data signal, and a chip select signal. Refer to the datasheet for the specific interface timing and protocol requirements.
The typical settling time of the ADL5356ACPZ-R7 is around 100ns to 200ns, depending on the specific configuration and operating conditions. This is the time it takes for the device to stabilize its output after a change in the input signal or configuration.

Trust Checks

System Verified

ADL5356ACPZ-R7 Overview

Use the download button to access the ADL5356ACPZ-R7 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADL53, or try a keyword search, such as RF/Microwave Mixers
