ADL5358ACPZ-R7 footprint, schematic symbol and 3D model by Analog Devices

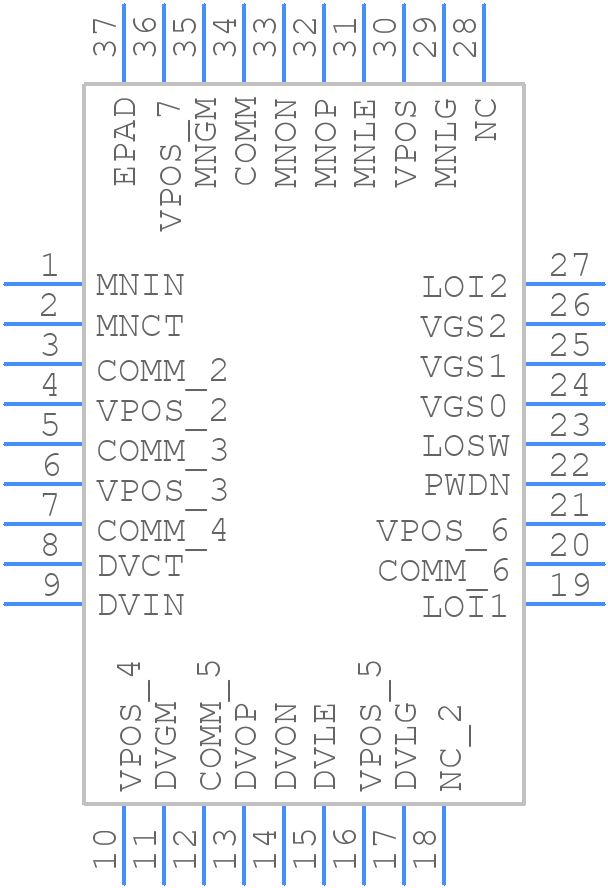

Symbol

click to zoom

PCB Footprints

ADL5358ACPZ-R7 - Analog Devices PCB footprint - Other - Other - QFN50P600X600X100-37N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADL5358ACPZ-R7
Part Number ADL5358ACPZ-R7
Manufacturer Analog Devices
Pin Count 37
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFN50P600X600X100-37N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

ADL5358ACPZ-R7 Details

Manufacturer Part Number:
ADL5358ACPZ-R7
Source Url Status Check Date:
2013-05-01 14:56:39.305
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
MO-220VJJD-1, 36 PIN
Pin Count:
36
Manufacturer Package Code:
CP-36-1
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
Additional Feature:
HIGH ISOLATION
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
JESD-609 Code:
e3
Operating Frequency-Max:
1700 MHz
Operating Frequency-Min:
500 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
RF/Microwave Device Type:
DOUBLE BALANCED
Terminal Finish:
Matte Tin (Sn)

ADL5358ACPZ-R7 Frequently Asked Questions (FAQs)

A good PCB layout for the ADL5358ACPZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
To ensure proper biasing, the ADL5358ACPZ-R7 requires a stable voltage supply, typically between 4.75V and 5.25V. The device also requires a bias current, typically around 10mA, which can be set using an external resistor. Additionally, the device's input and output pins should be properly terminated to prevent reflections and ensure optimal performance.
The ADL5358ACPZ-R7 is rated for operation from -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
Common issues with the ADL5358ACPZ-R7 can be troubleshooted by checking the device's input and output signals using an oscilloscope, ensuring proper biasing and termination, and verifying that the device is operating within its recommended operating conditions. Additionally, checking for PCB layout issues, such as poor grounding or signal routing, can help identify and resolve common problems.
Yes, the ADL5358ACPZ-R7 can be used in a differential configuration, which can provide improved common-mode rejection and noise immunity. However, this requires careful attention to PCB layout and termination to ensure that the differential signals are properly balanced and matched.
