ADL5365ACPZ-R7 - Analog Devices

Description: Balanced Mixer, LO Buffer and RF Balun

Download ADL5365ACPZ-R7 Model

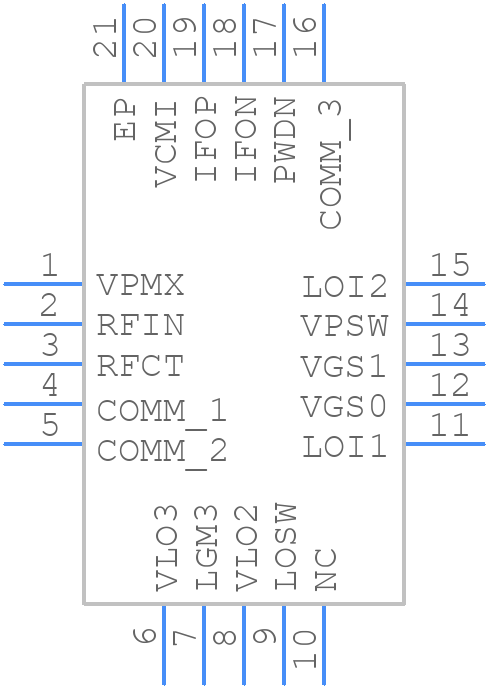

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL5365ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-9 (LFCSP_WQ)
click to zoom
3D Models
ADL5365ACPZ-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-20-9 (LFCSP_WQ)
click to zoom

ADL5365ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5365ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MO-220VHHC, 20 PIN

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-9

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    8.4 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    20

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    1200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC20,.20SQ,25

  • Power Supplies:

    3.3/5 V

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn)

ADL5365ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common-mode choke or a ferrite bead to filter the power supply.
  • The ADL5365ACPZ-R7 requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The input bias voltage (VBIAS) should be set to 2.5V using a voltage divider or a voltage reference.
  • The ADL5365ACPZ-R7 can handle input powers up to +10dBm. Exceeding this limit may cause compression or damage to the device.
  • The ADL5365ACPZ-R7 has a programmable bandwidth. Use the BAND_SEL pins to select the desired frequency band. For optimal performance, adjust the external components (R1, R2, C1, and C2) according to the datasheet's application note.
  • The typical current consumption of the ADL5365ACPZ-R7 is 120mA at 5V supply voltage. However, this may vary depending on the specific application and operating conditions.
