ADL5367ACPZ-R7 footprint, schematic symbol and 3D model by Analog Devices

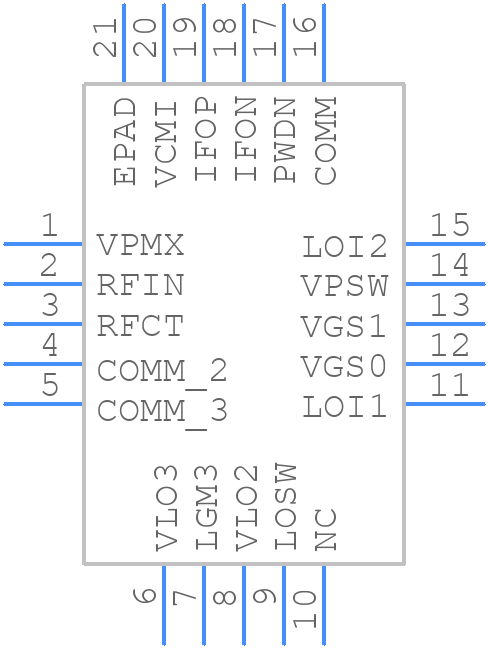

Symbol

click to zoom

PCB Footprints

ADL5367ACPZ-R7 - Analog Devices PCB footprint - Other - Other - QFN65P500X500X90-21N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADL5367ACPZ-R7
Part Number ADL5367ACPZ-R7
Manufacturer Analog Devices
Pin Count 21
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFN65P500X500X90-21N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

ADL5367ACPZ-R7 Details

Manufacturer Part Number:
ADL5367ACPZ-R7
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
MO-220VHHC, 20 PIN
Pin Count:
20
Manufacturer Package Code:
CP-20-9
ECCN Code:
5A991.B
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
Additional Feature:
HIGH ISOLATION
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Conversion Loss-Max:
8.5 dB
Input Power-Max (CW):
20 dBm
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
20
Operating Frequency-Max:
1700 MHz
Operating Frequency-Min:
500 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC20,.20SQ,25
Power Supplies:
3.3/5 V
RF/Microwave Device Type:
DOUBLE BALANCED
Surface Mount:
YES
Technology:
BICMOS
Terminal Finish:
Matte Tin (Sn)

ADL5367ACPZ-R7 Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common-mode choke or a ferrite bead to filter the power supply.
The ADL5367ACPZ-R7 requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The input and output pins should be biased to the desired voltage levels using external resistors and capacitors.
The ADL5367ACPZ-R7 can handle input powers up to +10dBm. Exceeding this limit may cause compression or damage to the device.
The ADL5367ACPZ-R7 is a broadband device, but it can be optimized for a specific frequency band by adjusting the external matching network. Use a network analyzer to measure the device's S-parameters and optimize the matching network for the desired frequency band.
The typical current consumption of the ADL5367ACPZ-R7 is 55mA at 5V supply voltage. However, this can vary depending on the input power and frequency.

Trust Checks

System Verified

ADL5367ACPZ-R7 Overview

Use the download button to access the ADL5367ACPZ-R7 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADL53, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
