ADL5369ACPZ-R7 - Analog Devices

Description: Up/Down Conv Mixer 3.3V 1.1GHz 20-Pin LFCSP EP T/R

Download ADL5369ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

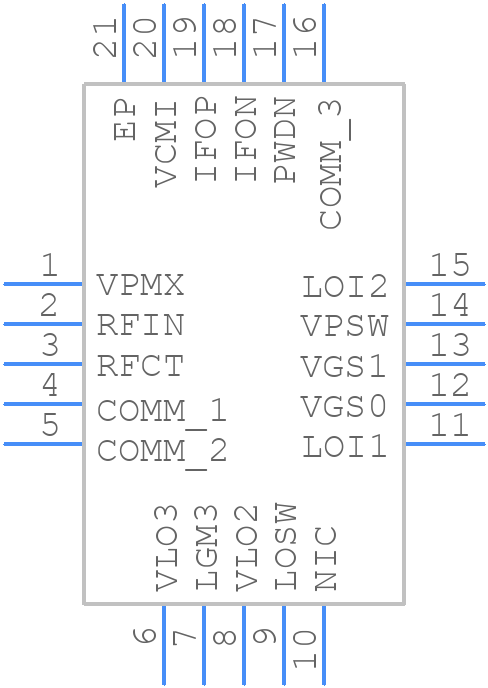

ADL5369ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5369ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-9 (LFCSP_WQ)
click to zoom
3D Models
ADL5369ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-9 (LFCSP_WQ)
click to zoom

ADL5369ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5369ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MO-220WHHC, 20 PIN

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    6.2 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1100 MHz

  • Operating Frequency-Min:

    300 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Terminal Finish:

    Matte Tin (Sn)

ADL5369ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADL5369ACPZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the ADL5369 evaluation board layout for a reference design.
  • The biasing of the ADL5369ACPZ-R7 depends on the specific application requirements. In general, the bias point should be set to achieve the desired output power and linearity. The datasheet provides a recommended biasing scheme, but it may need to be adjusted based on the specific requirements of the system. Consult with an Analog Devices application engineer or a experienced RF design engineer for guidance.
  • The ADL5369ACPZ-R7 is rated for operation from -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the output power may decrease. It's essential to ensure proper heat sinking and thermal management to maintain reliable operation within the specified temperature range.
  • Yes, the ADL5369ACPZ-R7 can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout to ensure proper balancing and matching of the two devices. Consult with an experienced RF design engineer or refer to application notes for guidance on push-pull amplifier design.
  • Common issues with the ADL5369ACPZ-R7 can be troubleshooted by checking the PCB layout, ensuring proper biasing and matching, and verifying the input and output impedances. Oscillations can be caused by poor layout, inadequate decoupling, or improper termination. Instability can be caused by insufficient bias current or incorrect operating conditions. Consult the datasheet and application notes for troubleshooting guidelines, and consider seeking assistance from an experienced RF design engineer or Analog Devices application engineer.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADL5369ACPZ-R7 Overview

Use the download button to access the ADL5369ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL53, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
