ADL5371ACPZ-R7 - Analog Devices

Description: Modulator / Demodulator Analog I/Q Quadrature Modulator

Download ADL5371ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

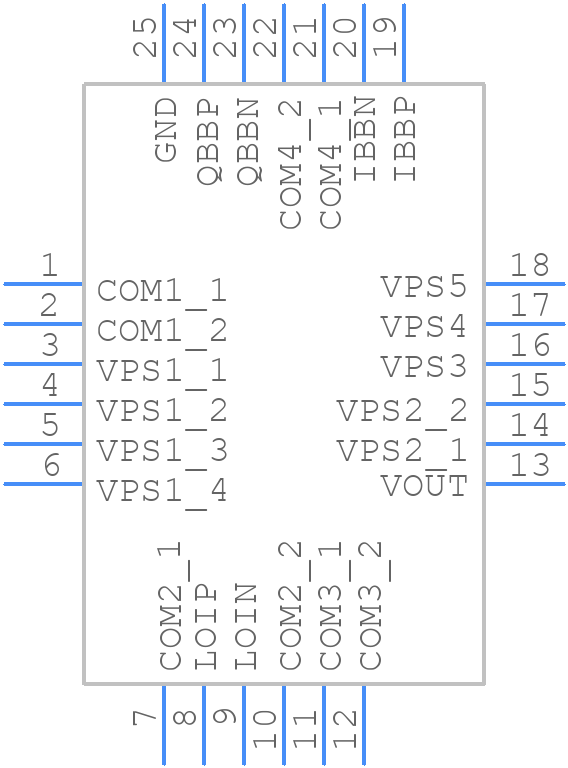

ADL5371ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5371ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-2
click to zoom
3D Models
ADL5371ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-2
click to zoom

ADL5371ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5371ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VGGD-2, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Modulation Technique:

    QUADRAPHASE

  • Operating Frequency-Max:

    1300 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    MODULATOR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

ADL5371ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common-mode choke or a ferrite bead to filter the power supply.
  • Adjust the bias voltage (VBIAS) to around 2.5V to 3.5V to achieve maximum linearity. Ensure the bias current (IBIAS) is within the recommended range of 10mA to 20mA. Use a low-noise, low-dropout regulator to power the bias circuit.
  • The recommended input impedance is 50 ohms, and the output impedance is 200 ohms. Use a conjugate match at the input and output to achieve maximum power transfer and minimize reflections.
  • Use a low-noise power supply, and decouple the power pins with 10nF to 100nF capacitors. Keep the device away from noise sources, and use a shielded enclosure to minimize electromagnetic interference.
  • The maximum operating temperature range for the ADL5371ACPZ-R7 is -40°C to 85°C. Ensure proper thermal management, such as heat sinking and airflow, to maintain a safe operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL5371ACPZ-R7 Overview

Use the download button to access the ADL5371ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL53, or try a keyword search, such as RF/Microwave Modulator/Demodulators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
