ADL5375-05SCPZEPR7 - Analog Devices

Description: Quadrature Mod 24-Pin LFCSP EP T/R

Download ADL5375-05SCPZEPR7 Model

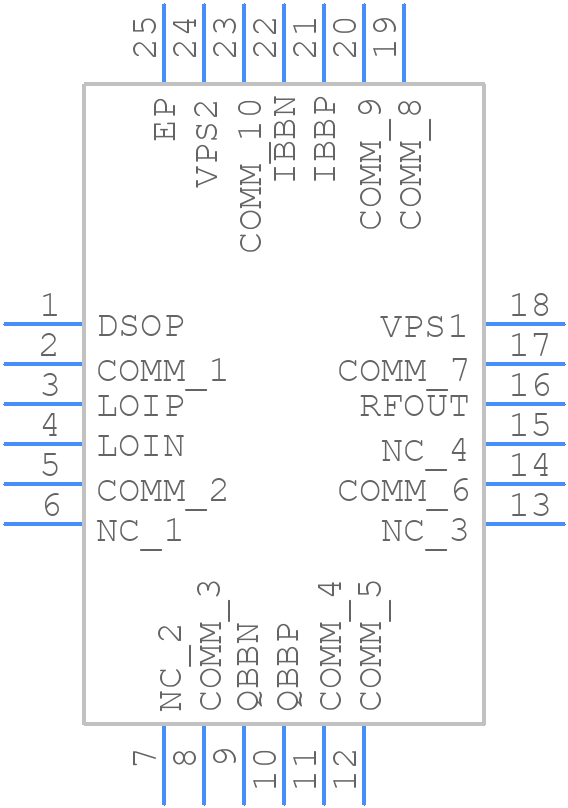

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL5375-05SCPZEPR7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP_WQ]1
click to zoom
3D Models
ADL5375-05SCPZEPR7 - Analog Devices  - 3D model - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP_WQ]1
click to zoom

ADL5375-05SCPZEPR7 Details

  • Manufacturer Part Number:

    ADL5375-05SCPZEPR7

  • Source Url Status Check Date:

    2013-05-01 14:56:39.35

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e4

  • Modulation Technique:

    QUADRAPHASE

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    400 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • RF/Microwave Device Type:

    MODULATOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

ADL5375-05SCPZEPR7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common-mode choke or a ferrite bead to filter the power supply.
  • Adjust the bias voltage (VBIAS) to optimize the linearity of the device. A higher VBIAS can improve linearity, but increases power consumption. Start with the recommended VBIAS of 2.5V and adjust as needed.
  • The maximum input power is +10 dBm. Exceeding this limit can cause compression and distortion. Use an attenuator or a limiter to prevent overdrive.
  • Use a conjugate match to ensure maximum power transfer. The device has a complex output impedance, so use a Smith chart or a network analyzer to determine the optimal match.
  • The operating temperature range is -40°C to +85°C. The device is designed to operate within this range, but performance may degrade at extreme temperatures.
