ADL5375-15ACPZ-WP - Analog Devices

Description: 50MHz to 6.0 GHz Quadrature Modulator, 1.7V common-mode voltage 24-VQFN -40 to 85

Download ADL5375-15ACPZ-WP Model

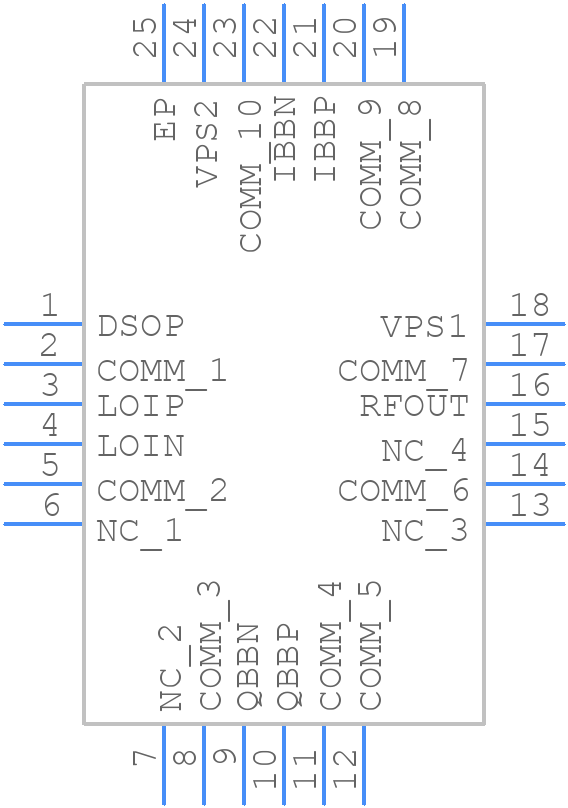

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL5375-15ACPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-7
click to zoom
3D Models
ADL5375-15ACPZ-WP - Analog Devices  - 3D model - Quad Flat No-Lead - CP-24-7
click to zoom

ADL5375-15ACPZ-WP Details

  • Manufacturer Part Number:

    ADL5375-15ACPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Modulation Technique:

    I/Q

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    MODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

ADL5375-15ACPZ-WP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces as short as possible and away from the digital lines. Use a common mode choke or a ferrite bead to filter the power supply lines.
  • The biasing circuit should be designed to provide a stable voltage supply to the device. Use a low-noise voltage regulator and decouple the bias lines with capacitors. The bias voltage should be set to the recommended value of 5V, and the bias current should be limited to 10mA.
  • The maximum input power that the ADL5375-15ACPZ-WP can handle is +15dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • The device requires no calibration. However, the user should ensure that the input signal is within the recommended range and that the device is properly biased. The user should also follow the recommended PCB layout and assembly guidelines.
  • The operating temperature range of the ADL5375-15ACPZ-WP is -40°C to +85°C. The device is designed to operate within this range, but the user should ensure that the device is properly cooled to prevent overheating.
