ADL5385ACPZ-R7 - Analog Devices

Description: 30 MHz TO 2200 MHz Quadrature Modulator

Download ADL5385ACPZ-R7 Model
Schematic
symbols

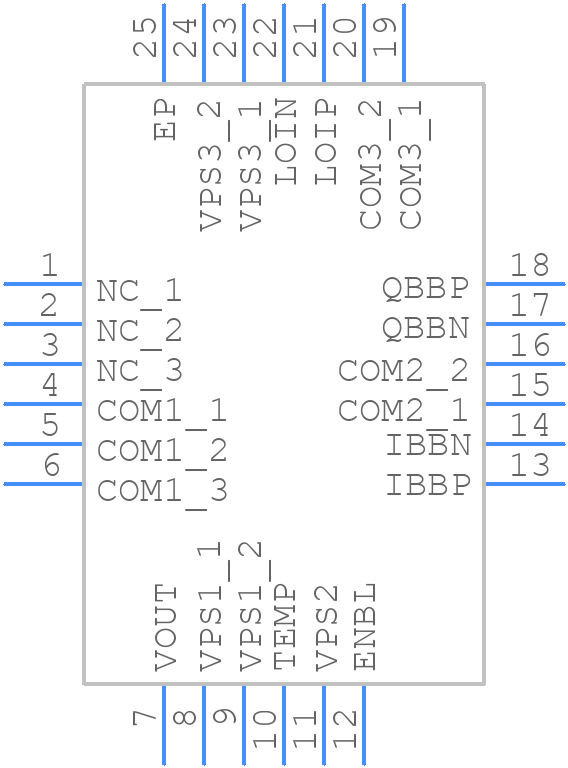

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADL5385ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Lead Lead Frame Chip Scale Package*45
click to zoom
3D Models
ADL5385ACPZ-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - Lead Lead Frame Chip Scale Package*45
click to zoom

ADL5385ACPZ-R7 Details

  • Manufacturer Part Number:

    ADL5385ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-2

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Modulation Technique:

    QUADRAPHASE

  • Operating Frequency-Max:

    2200 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    MODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

ADL5385ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • Use a resistive divider network to adjust the gain and phase matching between the I and Q channels. The divider network should be placed close to the ADL5385ACPZ-R7 to minimize parasitic effects.
  • Power up the VCC supply first, followed by the VEE supply. Ensure that the VCC supply is stable before applying the input signal.
  • Use a thermally conductive material, such as a heat sink or a thermal pad, to dissipate heat away from the device. Ensure good airflow around the device and avoid blocking airflow with nearby components.
