ADL5387ACPZ-WP - Analog Devices

Description: ANALOG DEVICES - ADL5387ACPZ-WP - RF Modulation / Demodulation IC, 50 MHz to 2 GHz, 4.75 V to 5.25 V supply, LFCSP-24

Download ADL5387ACPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

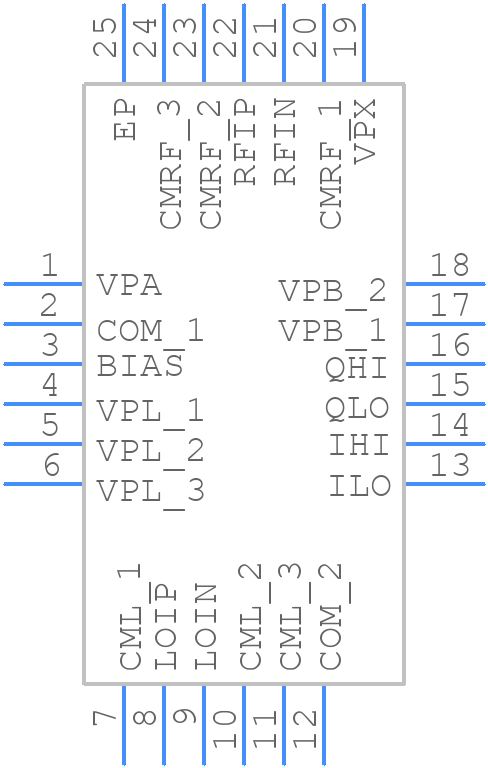

ADL5387ACPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADL5387ACPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-14 (LFCSP)
click to zoom
3D Models
ADL5387ACPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-14 (LFCSP)
click to zoom

ADL5387ACPZ-WP Details

  • Manufacturer Part Number:

    ADL5387ACPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-14

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADL5387ACPZ-WP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common-mode filter at the input to reduce noise.
  • Use the gain and bandwidth equations provided in the datasheet to calculate the optimal values for your application. You can also use the ADIsimPLL tool to simulate and optimize the performance of the ADL5387ACPZ-WP.
  • Use a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, both connected between the power supply pins and ground. This will help to reduce noise and improve stability.
  • Check the PCB layout and ensure that it meets the recommended layout guidelines. Verify that the power supply is stable and well-decoupled. Use a spectrum analyzer to check for oscillations and noise. Consult the datasheet and application notes for troubleshooting guides.
  • The ADL5387ACPZ-WP is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for guidance on using the device in high-temperature environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADL5387ACPZ-WP Overview

Use the download button to access the ADL5387ACPZ-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADL53, or try a keyword search, such as Cellular Telephone Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
